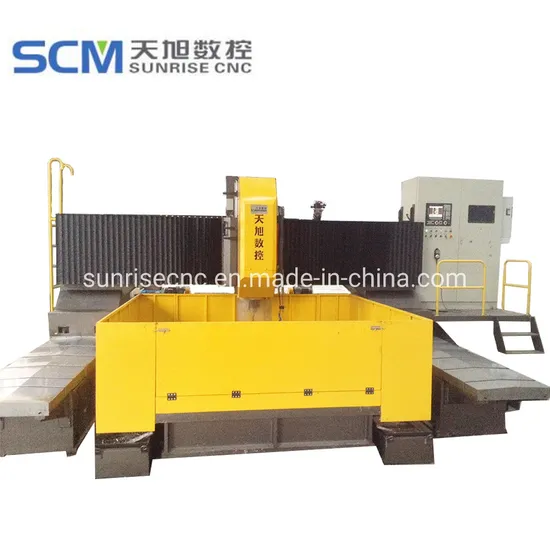

CNC High-Speed Plates Drilling Machine

Product Description

Applicable Industry: Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, iron tower industries.
Product feature:
1. The lathe consists of lathe bed, work table, gantry, slide carriage, power head, CNC system, cooling chips discharge system etc.
2. The lathe works in mode of lathe bed and gantry being fixed and work table moving.
3. The lathe bed and gantry are weld assembly, work table is iron casting, which was high temperature annealed before processing, was annealed again after half finished machining to remove stress, then finished machining so that ensure stable precision.
4. The lathe has 3 numeric control axes; a heavy linear guide is equipped on the lathe bed. The work table can make longitudinal movement along the guide(X axis), the gantry cross beam has a linear guide too; the slide carriage can make lateral movement along the guide (Y axis). Sliders are equipped on the slide carriage, a guide on power head which can make vertical movement on the slide carriage.
5. The power head spindle is precision spindle of Taiwan KENTURN / Taiwan Xutai, which is driven by special frequency conversion motor and can make stepless speed regulation according to needs. The spindle is BT50 taper hole. The drilling head, reamer or milling cutter can be installed by splice bar. The spindle box has a loose cutter cylinder (air and hydraulic pressure) for easily changing cutters. It also can equip with cutter inter-cooled splice bar to realize high speed cutting.
6. The chip cleaner equipped at the back of work table can discharge chips automatically. The lathe use water cooling with the system of cooling liquid providing, recycling, circulating and filtrating.
7. Numerical control uses FAGOR8055 system, with RS232 connector and color LED panel, Chinese interface. It can make spot / external PC workpiece input and be easily operated.
8. Protective covers are equipped for X/Y axis guides and lead screw of the lathe. Iron sheet cover is for X axis, and organ-protective cover for Y axis.
9. For ensuring the reliability of the lathe, the key components use high quality imported products. See the main spare parts list for details.
Specifications:

Parameter Name	Item	Specifications
Max. size	L X W	4000X4000mm
Max thickness		250mm
Work table	Width of T slot	28/500mm
Vertical slide type drill head	Quantity	1
	Main spindle taper hole	BT50
	Max drill diameter(common carbon steel)	φ40mm(carbide drill)
		φ50mm(HSS twist drill)
	Main spindle speed	30-2400r/min
	Motor power of spindle	22/33kW
	Distance between spindle tip to work table	300-800mm
(X axis) Gantry longitudinal move	Max. stroke	2000mm
	Moving speed of X axis	0-8m/min
	Servo motor power of X axis/torque	3kW/28.4Nm
(Y axis) Power head transversal move	Max stroke	2000mm
	Moving speed of Y axis	0-8m/min
	Servo motor power of Y axis/torque	3kW/28.4Nm
(Z axis) Vertical slider feeding	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
	Servo motor power of Z axis/torque	3kW/28.4Nm
Positioning accuracy	X/Y axis	≤0.1mm/ Full length
Repositioning accuracy	X/Y axis	≤0.05mm
Hydraulic system	Hydraulic pump pressure/flow rate	6.5MPa /25L/min
	Hydraulic pump motor power	3kW
Pneumatic system	Compressed air pressure	≥0.4MPa
Chip cleaning and cooling	Chip cleaner type	Plate chain type
	Chip cleaner no.	2
	Chip cleaning speed	1m/min
	Chip cleaner motor power	0.75kW
	Motor power of inner cooling water pump	3kW
	Motor power of Outer cooling water pump	0.75kW
Automatic lubricating system	Lubrication pressure	2MPa
	Lubrication point oil injecting amount	0.1mL
	Lubrication period	6-10min
Electric system	CNC system	FAGOR8055
	CNC axis NO.	4
Whole power of motors		Approx. 48kW
Overall size	LxWxH	Approx. 5800X5800X3600mm
Weight	Approx. 28t

---
