Troughing Roller, Self-Aligning Roller, Wing Roller

Product Description

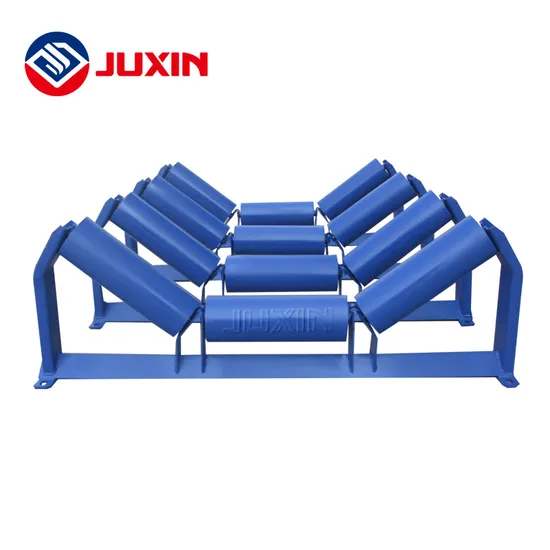

Our company can produce all kinds of belt conveyor and its spare parts, such as idler roller (see above picture), pulleys and brackets. And upon more than 20 years' producing experiences, our company has had a great improvement on idler rollers, but only on the quality and performance but also on the surface. The roller above mentioned is painted by stoving varnish, which can make the roller surface more smooth and bright!
Diameter: 50 to 219mm
Length: 190 to 3, 500mm
Used in the steel industry, harbor, coal industry, power industry, cement industry, and more
Tube: Customized welded steel tube
Shaft: Bright drawn steel to required bearing tolerance
Shaft end: Both ends of tube are simultaneously machined and chamfered
Bearing: Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
Seals: Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal
Lubrication: Grease is lithium soap type grease with rust inhibitors
Welding: Mixed gas shielded arc welding end Our company can contract, design, manufacture and install all kinds of conveying projects, including all kinds of belt conveyor, large slope conveyor, mobile conveyor and bucket elevator and the crusher components. Applications: The belt conveyor can be used in mining, coal industry, crusher and screening for bulk materials or combined materials. Used in the steel industry, harbor, coal industry, power industry, cements industry, and more. Main technical Parameters of General Fixed Belt Conveyor

Capacity (T/h)																Power (KW)
Belt Speed m/s		0.8	1.0	1.25	1.6	2.0	2.5	3.15	4.0	0.8	1.0	1.25	1.6	2.0	2.5
Belt width B	500	78	97	122	156	191	232			41	52	66	84	103	125	1.5-75
	650	131	164	206	264	323	391			67	88	110	142	174	211	2.2-90
	800		276	348	445	546	661	824		118	147	184	236	289	350	3-160
	1000		435	544	696	853	1033	1233			230	288	368	451	546	4-280
	1200		655	819	1048	1284	1556	1858	2202		345	432	553	677	821	4-400
	1400		891	1115	1427	1748	2118	2528	2996		469	588	753	922	1117	5.5-630
	…

Note: the convey capacity is calculated on the basis of when horizontal transportation, the material move angle is 30°, and specific gravity 1.0Ton/m2

---
