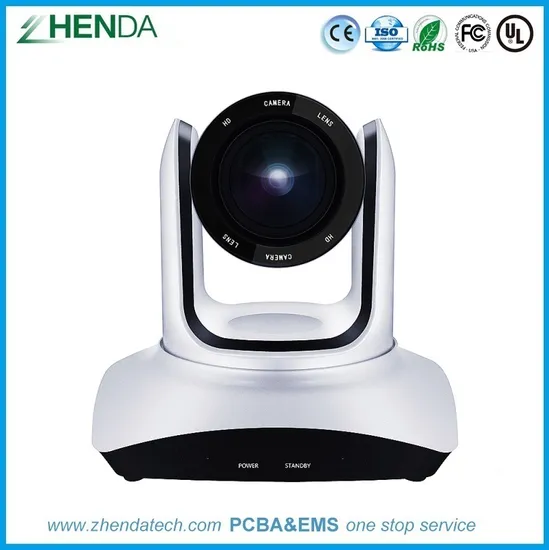

1080P HD/HDMI USB Video Conference Camera

Product Description

Video Features: 1080P HD video, 20X Optical Zoom Optional, long-distance close-up capture Support USB 2.0 plug-and-play non-drive access, simple connection, suitable for all kinds of meetings and video applications HDMI mainstream interface, can support the mainstream device docking matching 355-degree Pan, can achieve multi-angle image acquisition Maximum 12X 72.5-degree ,12X 58.7-degree Wide Angle Lens, large field of view to address the needs of small scenes Multi-functional infrared remote control, with multi-functional OSD menu, can flexibly adjust the image effect, adapt to complex venue Environment Compatible with Sony Visca Protocol and Pelco P / D protocol Image Flip support (for desktop and ceiling installations) Parameter:

Sensor	SONY 1/2.8" Progressive CMOS
Effective Pixels	3.5 Megapixels
Resolution HD	U2:MJPG/H.264:320*240,640*480,800*600,1280*720,1920*1080
	HDMI:1080P60/50,1080P30/25,1080i60/50,720P60/50
Signal System	PAL/NTSC
Lens	12X f=3.9mm(W)~46.8mm(T) 20X f=4.7mm(W)~94.0mm(T)
Horizontal View Angle	12X:72.5°(W) ~7.4°(T) 20X:58.7°(W)~3.2°(T)

Focus System	Auto/Manual
Minimum Illumination	0.1Lux
Shutter Speed	1/1~1/10000S
Gain	Auto/Manual
White Balance	Auto/Manual/ATW/One-click/Indoor/Outdoor
Image Effect	Full color/black and white/Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Preset position	9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
Video Output HD	HDMI, USB 2.0
Power	12V DC(10.8~13.0V DC)
Operating Temperature	0ºC~40ºC
Storage Temperature	-20ºC~60ºC
Dimensions	(L)181*(W)181*(H)176mm
Consumption	Max. 12W (DC 12V))
Weight	1525g
Color	Silvery White
Protocol	SONY VISCA,PELCO P/D
Control Mode	RS232, 422, 485
Accessories	DC 12V power adapter, IR Remote Controller, Operation manual, RS-232C Cable, USB Cable,HDMI Cable, Ceiling bracket
