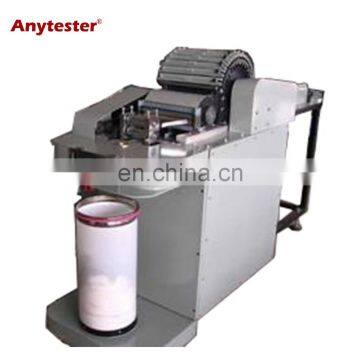

HY1002 Laboratory Wool Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Features
1. Imported frequency converter control, high efficiency.
2. Mini type machine, save researching cost and easy to operate and maintain
3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.
4. Can be used for cotton fiber or wool fiber (alternative)with different machine parts
Specification
Model
| HY1002
Laboratory Wool Carding Machine
|
Cylinder speed
| 600rpm
|
Cylinder size
| Φ300 * 250mm
|
Doffer size
| Φ160 * 250mm
|
Input width
| 260mm
|
Fiber type
| Cotton or wool (alternative)
|
Fiber length
| 80 ~ 120 mm or customized
|
Output capacity
| 0.25 ~ 1 kg per hour or customized
|
Can size
| Φ250*550mm
|
Power
| 220V/380V, 50/60Hz, 1200W
|
Dimension
| 2100*800*1300mm
|
>>
