6L (5L+1) Special Design Essential Oil Extraction Machine Supercritical CO2 Extraction

Product Description

What does Careddi Supercritical CO2 Extraction System consist of ? Careddi Supercritical CO2 Extraction System (Careddi SCFE) is well designed for effective oil extraction and easily operation. It is a completely configured system consists of extraction vessels (extractors), separation vessels (separators), Operation front panel, High pressure CO2 Pump, Chilling system, heating system, Pressure regulator valve, Co-solvent pump, CO2 Storage tank, CO2 Recovery pump etc. The users can run the machine to produce essential oils only need to provide with electricity and CO2.

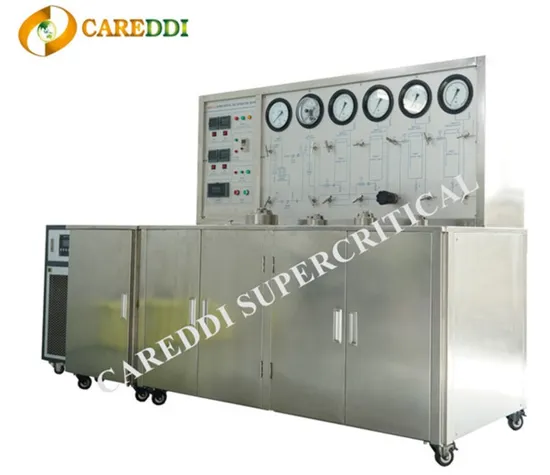

Careddi Supercritical CO2 Extraction Equipment Model 6 Liter (5L+1L) Detailed Picture
Products Specifications

Careddi Supercritical CO2 Extraction Machine - 6Liter(5L+1L) Techinical Parameters
SN	Part Name	Specifications
1	Extraction Vessel	6Liter(5Liter +1Liter) , Max working pressure: 50MPa, SS304/316 material
2	Separation Vessel	2L*2 , Max working pressure: 30MPa, SS304/316 material
3	CO2 High Pressure Pump	Flowrate: 100L/h, Max working pressure: 50MPa
4	CO-Solvent pump	Flowrate: 0.25-4L/h, Max working pressure: 40MPa (Mechanical adjustable)
5	Cooling system	Cooling capacity: 5100Kcal/h (air cooling), Temperature: -5ºC~+5ºC
6	Heat exchange system	Φ6/50MPa, circulating water jacket heating system, adjustable temperature.
7	Purification system	1Liter, Max working pressure: 50MPa
8	CO2 Storage tank	6Liter, Max working pressure: 16MPa
9	Levelmeter	6.3-63L/H, indicate both instant flow rate and accumulation
10	Temperature control system	Room temperature~85ºC adjustable, Accuracy: ±1ºC
11	Safety devices and other components	Pressure gauge at high pressure pump outlet, overpressure protection.Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief.
12	Pipe lines	Valves, fittings: DW14 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel.
13	Total power	3 Phase, 14.00kw

Customer self-provided Items
3 Phase Electricity Power: 14.00KW
Installation dimension: 2700×2500×2300mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5% Standard Models

Sn	Model	Specification	Maximum working pressure	capacity
1	1L	1 extractors 2 separators	480bar	3lbs-10lbs
2	2L	1 extractors 2 separators	480bar	6lbs-13lbs
3	5L	1 extractors 2 separators	480bar	18lbs-30lbs
4	5Lx2	2 extractors 2 separators	480bar	33lbs-55lbs
5	10Lx2	2 extractors 2 separators	380bar	66lbs-110lbs
6	15Lx2	2 extractors 2 separators	380bar	90lbs-160lbs
7	24Lx2	2 extractors 2 separators	380bar	120lbs-220lbs
8	25Lx2	2 extractors 2 separators	380bar	125lbs-230lbs
9	24Lx 4	4 extractors 2 separators	380bar	240lbs-440lbs
10	50Lx2	2 extractors 2 separators	380bar	400lbs-500lbs
11	50Lx4	4 extractors 3 separators	380bar	800lbs-1000lbs
12	50Lx6	6 extractors 3 separators	380bar	1200lbs-1600lbs
13	150Lx2	2 extractors 3 separators	380bar	1200lbs-1700lbs
14	150Lx4	4 extractors 3 separators	380bar	2000lbs-3200lbs
15	200Lx2	2 extractors 3 separators	380bar	1800lbs-2400lbs
16	200Lx4	4 extractors 3 separators	380bar	3600lbs-4800lbs
17	700Lx3	3 extractors 3 separators	380bar	8800lbs-12000lbs
18	1000Lx3	3 extractors 3 separators	380bar	10000lbs-18000lbs

Applications Careddi supercritical co2 machines are widely used to extract plant essential oil for the pharmaceutical industry. It is also widely used in food industry: it can be used to make the extraction of various flavoring agents, such as various spices commonly eaten in southeast Asian countries. Extract ginger oil, lycopene, chilli oil, etc., which often made in India and Sri Lanka. In addition, also dabbled in the cosmetics industry and health products industry , can be extracted from a variety of essential oil products.
Company Profile
Successful Project
Packaging and shipping
FAQ
Q1:Is co2 extraction organic? A1:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q2: Why is co2 better than ethanol?
A2: CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products. Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q3: Is co2 extracted oil safe?
A3: CO2 extraction is also a safe and effective way to make medical-quality full spectrum essential oil. It remains one of the most popular herb extraction methods in the industry, thanks to the combination of safety and cost-effectiveness.
Q4: How does supercritical co2 extraction work?
A4: To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q5: Can we conduct an extraction test before buying?
A5: Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.

---
