Mirco Nano Coated Ball Nose End Mills with 2flutes

Product Description

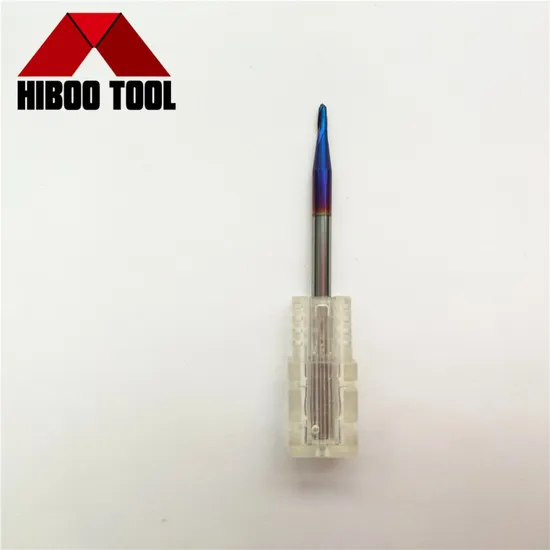

Blue Nano coated ball nose milling cutter
1. Raw Material

HRC65

Sandvik H10F

Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

2.Super Coating

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

3. Super ANCA Grinding Machine
4. Each end mill is inspected by Zoller measuring and inspected machine.
5.Suit for processing steel ,stainless steel ,nickel alloy ,cast iron and other hard materials
6. The following Specification for your refer, We also provide the OEM or ODM service

(Order No) Cutting Shank Flute A.0.l d D l L R0.5×2×4D×50L×2F 1 4 2 50 R0.75×3×4D×50L×2F 1.5 4 3 50 R1.0×4×4D×50L×2F 2 4 4 50 R1.25×5×4D×50L×2F 2.5 4 5 50 R1.5×6×4D×50L×2F 3 4 6 50 R1.75×7×4D×50L×2F 3.5 4 7 50 R2.0×8×4D×50L×2F 4 4 8 50 R2.5×10×6D×50L×2F 5 6 10 50 R3.0×12×6D×50L×2F 6 6 12 50 R3.5×14×8D×60L×2F 7 8 14 60 R4.0×16×8D×60L×2F 8 8 16 60 R4.5×18×10D×75L×2F 9 10 18 75 R5.0×20×10D×75L×2F 10 10 20 75 R5.5×22×12D×75L×2F 11 12 22 75 R6.0×24×12D×75L×2F 12 12 24 75 R7.0×28×14D×100L×2F 14 14 28 100 R8.0×32×16D×100L×2F 16 16 32 100 R9.0×36×18D×100L×2F 18 18 36 100 R10×40×20D×100L×2F 20 20 40 100

6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
7. Payment Term
T/T ,Western Union , MoneyGram,L/C
8.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

---
