Product Details
Product Description
Product Description

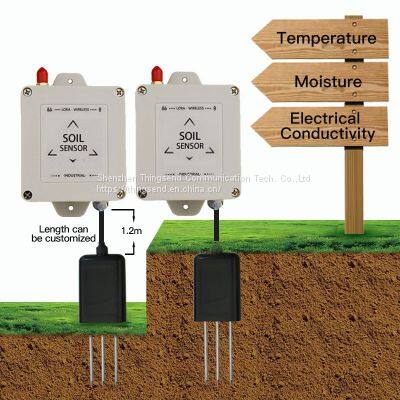

1.Product Features:
Track Temperature (-30℃ to 80℃）
Track Moisture(0-100%）
Track EC (0-10000us/cm）
Electrode detection, high reliability;
Battery operated, place it anywhere
Wireless transmission distance is more than 2km in open field(no obstacles)
Receive alarm sound and email alert
Alert multiple users
Set high-low threshold value for alert
Monitors /alerts battery levels
Unlimited history of readings for 6 months
Monitor every 5 mins default,customized in factory
No fees or subscription
Free software
One concentrator can work with more than 100pcs sensors.
LED light on when taking readings
Requires 1/2 x AA lithium batteries (included)
Battery life: 5+ Years @5mins average data sending time
Manufacturer,support OEM/ODM service
2. XZ-DS04-WTE Product instructions
2.1 XZ-DS04-WTE working process
XZ-DS04-WTE Switch to different working modes according to working mode, the modes are as follows:
2.1.1 Sleep mode：Sensor does not work, no wireless transmission, and fully sleep with low power consumption.
2.1.2 Normal mode：Periodically detect sensors and transmit signals.
2.2 XZ-DS04-WTE sensor data protocol
Example：GW_ID:12345,TYPE:WT,ID:1,STAT:11000000, T:14.5℃,H:53.3%, PH: 7.0, E: T ST: 5M,
V:3.66v,SN:2,RSSI:-79dBm,E:160.2020,N:110.2020,Time:2018-2-4 14:20:39
Explanation：
2.3 XZ-DS04-WT Technical parameter
3.Various Concentrators/Gateways for Choosing
4.Free Software for Monitoring
Using the browser to configure the remote IP, port or domain name, local IP or dynamic IP; one can use our company's Galaxy platform software, which can provide CS stand-alone version and BS cloud service version; we can also provide communication protocol and users build their own platforms.
5.Application Field
● Agriculture and forestry soil testing
● Vegetable and greenhouse soil monitoring
● Orchard and planting soil monitoring
6. XZ-DS04-WTE Dimension：
>>
