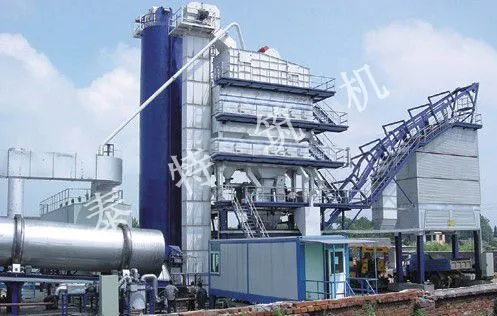

Lb-5000 Asphalt Mixing Plant, The Construction of Asphalt Equipment

Product Description

Product introduction:
The overall layout is compact, novel structure, the independent innovation and absorb the advanced technology, excellent performance.
The unique function of environmental protection, the seal, low noise, dust standards.
Advanced microcomputer control system DE Danny, PLC module can realize the automatic and semi-automatic, manual but connected controlling and single control. Real-time dynamic simulation screen display, all-round self trouble diagnosis The machine adopts electronic measurement. Advanced double trechometer way has the function of automatic compensation, high measuring accuracy.
The core components are imported components assembly and become, fully guarantee the reliability of the whole equipment
THE MAIN TECHNICAL CHARACTERISTICS:

content/type	LB-5000
Rated productivity(t/h)	360-400
Mixing bar capacity(kg/batch)	5000
Total installed capacity (Finished product warehouse is not included)(kw)	1052
Total floor area(m×m)	67.5×36.5=2463.75
Fuel consumption rate(kg/t)	≤6.5
Type of fuel	diesel fuel,heavy oil,natural gas
Finished material temperature(ºC)	160
Cumulative measurement accuracy of ore materials(%)	≤±0.3
Measurement accuracy of asphalt materials(%)	≤±0.1
Powder metering accuracy(%)	≤±0.2
Oil-stone ratio deviation(%)	≤±0.1
Stable and accurate discharge temperature(ºC)	±5
Ambient noise[dB(A)]	≤80
Noise in the operator's ears [dB(A)]	≤70
Dust removal method	Compartment, high-pressure pulse bag
Dust emission concentration[mg/Nm3]	≤80

Company Introduction:
Wuxi Taite Road Construction Machinery Co., Ltd. is located in the scenic Taihu Lake, Mountain feet, a stone's throw away from the Sunan International Airport, and south Beijing-Hangzhou Grand Canal, west of State Road 312 and the Beijing-Shanghai intercity high-speed railway, adjacent to the Taihu Lake high-speed, traffic is very convenient, excellent location of the ground; company is located in Yangtze River Delta, Wuxi New District Shuofang Industrial Park, the region's economic activity, information fast, accessible at home and abroad with technical support and product support capabilities to build road maintenance machinery and equipment as the representative of the product, has focused on the development of the contemporary trend of industrial modernization. Building company is the earliest professional manufacturer of road maintenance equipment.
