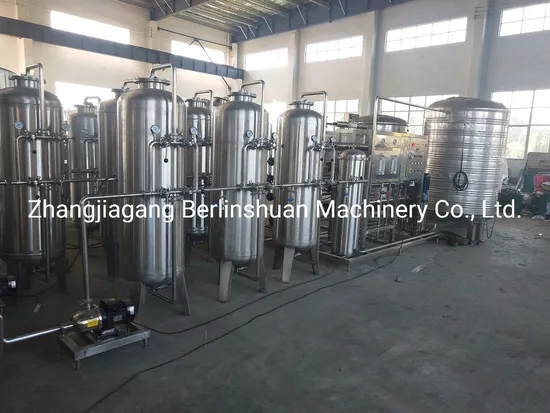

Source (Raw) water tank →booster pump→ muti-media filter(sands filter)→ active carbon filter→ water softener(or inhibitor dosing)→Cartridge/Security/Micro filter→high-pressure/Centrifugal pump→ Reverse Osmosis system→ Ozone generator →RO purified tank
| No. | Items | Information |
| 1. Pretreatment part |
| 1.1 | Raw water tank | Storage raw water |
| 1.2 | Booster pump | Provide water for filters |
| 1.3 | Sand filter | Remove turbidity, SS matter, organic matter, colloid, etc. |
| 1.4 | Active carbon filter | Remove color, free chloride, organic matter, harmful matter, etc. |
| 1.5 | Water softener | Soft water and reduce it's hardness. |
| 2. RO part |
| 2.1 | High pressure pump | Provide water for RO. (CNP) |
| 2.2 | PP filter (precision filter) | Prevent large particles, iron, dust, SS matter, impurity into RO membrane. |
| 2.3 | RO membrane | Removes: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. RO membrane: Hydranautics (USA) |
| 3.Water sterilizer part |
| 3.1 | Ozone generator | Product ozone |
| 3.2 | Ozone sterilizer tank (Pure storage tank) | Storage water and ozone sterilizer |
| 4. Electricity control system |
| 4.1 | Electricity components | Import from German. Schneider, Delixi |
| 4.1 | Pipe and fitting | SUS304 |
1.Reverse osmosis drinking water filter use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2.Reverse osmosis drinking water filter has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.Reverse osmosis water filter is compact, easy installation.
4.Reverse osmosis water equipped with PLC and touch screen control and remote login .(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This parts is optional.
5.Drinking water produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6 . Reverse osmosis water filter in Haiyuan water factory has more than 10 years production experience.
7 . Reverse osmosis water filter can supply overseas for installation and commissioning.
