High Efficiency and Low Consumption PVC Plastic Pulverizer

Product Description

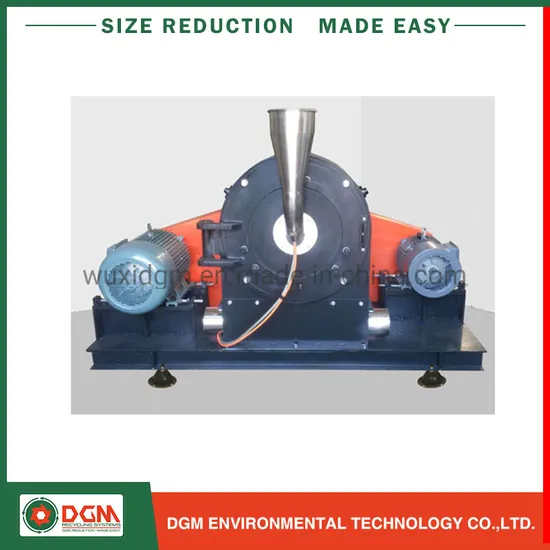

High Efficiency and Low Consumption PVC Plastic Pulverizer
Descriptions The DPM High Speed Precision Pulverizers are available with disc diameters ranging from 300mm to 800mm. They are high speed precision grinding machines used for processing medium hard, impact resistant and friable materials. The infeed material is fed via a vertically mounted fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force transfers the material through the grinding chamber and the discharge powder is collected via a blower and cyclone unit.
The DPM range can be equipped with either one piece or segmented grinding discs which are made from chrome nickel tool steel as standard and can be treated for increased wear resistance.
The material temperature is monitored automatically throughout the process and an automatic cooling system ensures that temperature levels are kept within a safe range.
The material is fed into the machine via a vibrating dosing channel, the feeding rate is automatically adjusted based on the amperage of the motor and material temperature readings.
The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge.
Integrated rundown safety device prevents access to the discs until they have come to a complete stop. A safety switch prevents machine startup when the disc cover is open and the machine features emergency stop buttons on the machine body and control panel.

Specificatoins
Layout
Features Choice of 1 piece or segmented - grinding discs Automated temperature monitoring Automated cooling system Special bearing arrangement Easily adjustable grinding gap Near flat design of cutting chamber Vibrating dosing channel Low drive power / High throughput Robust welded steel construction Wide choice of disc variations Replaceable wear plates Amp meter control
Options Feeding & dosing unit Touch screen PLC control Screening machine Metal separator Rotary valve Soundproofed cabin Vacuum discharge conveyor Automatic lubrication unit Bespoke colour scheme
Applitions PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect metal recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts by LCL, air or international express.
4. Excellant logistic team to guarantee the shredder and granulators machines to be safely shipped to customer appointed loaction.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q2: Are you a trading company or a factory ?
DGM is a Factory with 10 years experience in machinery manufacturing, and 20 years experience in technology.
Q2: Will we provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is our after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: what is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Mobile/ +86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.

---
