Factory Price Cx2000 Honeycomb Paper Core Machinery

Product Description

Model	CX2000
Type	Continuous type
Adhesive	White latex, starch glue
Grammage of core paper	90-140gsm
Paper roll quantity	6 or 8
Cutting speed	720 cuts/min
Applicable cell size	4-30mm
Production output (for 30mm thickness and 140gsm)	1.7t/hour
Heating type	Steam heating, hot air circulation
Power	About 60kw
Length	33m

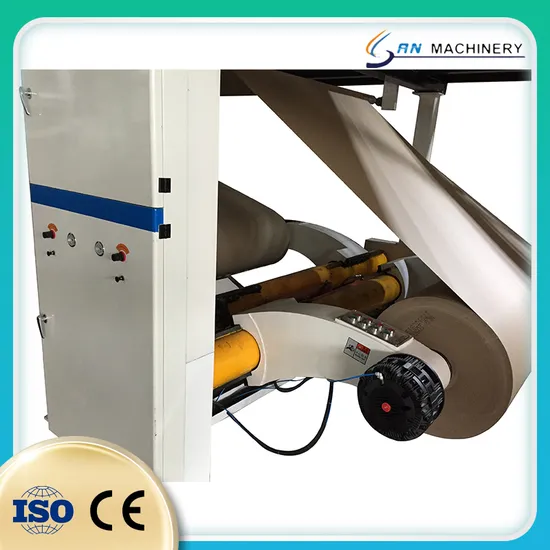

Honeycomb Paper Core Making and Cutting Machine
CX2000 is a fully automatic honeycomb production line to produce honeycomb paper core continuously. No need for paper cutter and honeycomb paper connecting machine. Production flow is paper rolls feeding-gluing-laminating and drying-cutting-stacking.
1.Human-machine interface, PLC control, and high auto to increase the efficiency.
2.Two sets of gluing devices to make two different kinds of?cells for the honeycomb paper board.
3.Easy operation
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.

---
