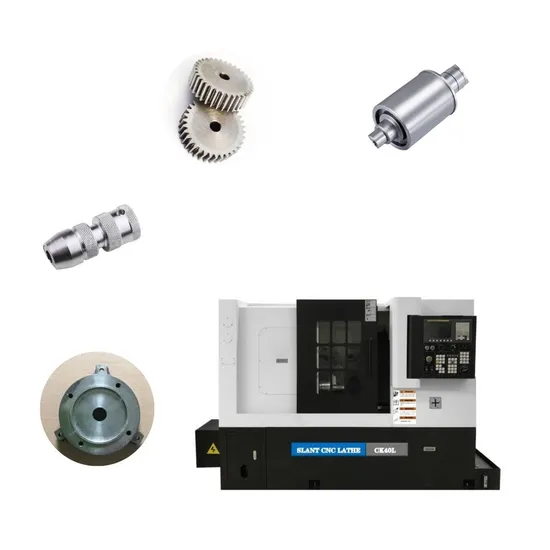

High Rigidity Model Suitable Ck40L CNC Slant Lathe Fabricado En China

Product Description

Product Feature:
1.High precision slant CNC lathe with Taiwan screw & linear guideway.
2.High precision cartridge type spindle ensure the rigidity and precision.
3.Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.
4.Siemens,Fanus, Syntec, Fagor controller as optional.
5.Monoblock cast iron of the whole machine ensure high rigidity.

Machine Type	CK40L
Distance between centers	500mm/750mm
Max swing over bed	Φ400mm
Max swing over cross slide	Φ260mm
Max Spindle speed	4000rpm
Spindle bore	Φ62mm
Spindle nose	A2-6
Chuck diameter	Φ200mm
X axis travel	240mm
Z axis travel	500mm/750mm
X/Z axis Rapid traverse	15/15 m/min
Turret Type	Hydraulic turret
Tool station number	8
Tool holder	25x25mm
Tailstock Sleeve	Hydraulic Sleeves
External diameter	Φ75mm
Max travel	80mm
Taper of bore	MT5
Spindle motor power	7.5KW
Coolant pump power	120W
Type of guideway&Screw	Taiwan linear guideway&screw
Overall dimension(LxWxH)	2800/3150 x 1800 x 1800mm
Packing dimension(LxWxH)	3000/3450 x 2000 x 2000mm
Net/Gross weight	2800/3100kg 3000/3300kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
