Disc Filter Similar to Azud Water Filter

Product Description

Description

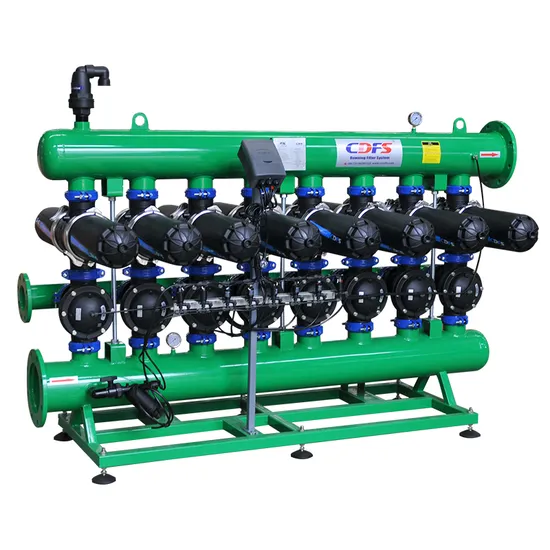

Automatic disc filter system with disc filtering element(as below) with 2"/ 3" /4" backwash valves,air valve,manifolds,controller.
Easy to install. Automation available in 220V.
Filter materials

tems	Materials
Disc filter modules	Nylon
Pipeline	Carbon steel/HDPE /Stainless steel
Pressure gage	Stainless steel
Auto backwash valve	Nylon/stainless steel
Electromagnetic valve	Brass/nylon
Air valve	Plastic
Controller cover	Plastic/Stainless steel

Design and selection of models
1.Water quality classification
A.: Water of good quality: city tap water, well water from stable aquifer.
B.: Water of general quality: cooled circulating water, surface water treated by sedimentation, and drained water treated by effective deposition and completely biological treatment.
C.: Water of relatively poor quality: groundwater from aquifer of poor quality, drained water treated by effective deposition but with poor biological treatment, and surface water with enormous microbes.
D. The worst quality: well water with rich iron and manganese elements, surface water affected by flooding and without sedimentation, and drained water without precipitation and biological treatment.
Different water qualities have different influences on the filter's operation period, so in general it is better to keep the system's backwash intervals no less than 1 hour.

Application
Automatic Back Flushing Disc filter for Seawater/UF/RO Pretreatment
Automatic disc filter for cooling water
Packing pictures
Company introduction
Hunan Dawning Filter System Technology Co., Ltd. have been specialized in manufacturing and trading water filter systems since 2002.
Our main products are automatic back washing filter, self cleaning filter,sand media filter, disc filter, and so on. We could provide efficient, stable solutions for irrigation and industrial water treatment.
The products are widely used in construction, steel, electricity, petrochemical, metallurgical, pharmaceutical, paper, automotive, hotels, municipal and other major industries.
They have been exported to hundreds of countries and regions such as America, Canada, Chile, Australia, Italy, India, Singapore, Korea,etc.
We owned 9 patents and adopted the ISO9001 and CE.

---
