Easy to Use a-Type Layer Cage Poultry Farming Low Cost

Product Description

About Us
For the last couple of years focus only on one thing : How to make your poultry farming result better.
We design, produce and install automatic poultry cage equipment with automatic drinking line,automatic feeding machine,automatic manure belt removing,automatic egg collecting and inner house climate control.
We offer you practical,economical and environmental-friendly solution all geared to future needs.
We have the installation experiences with 300 million poultry farm equipped with 12 tiers of layer cage system.Our good quality comes from our advanced production equipment, and on the other hand from our mature design and lots of installation experience.
Now,our installation quantity is about 1000 houses per year. Come talk to us to start your modern poultry farm.

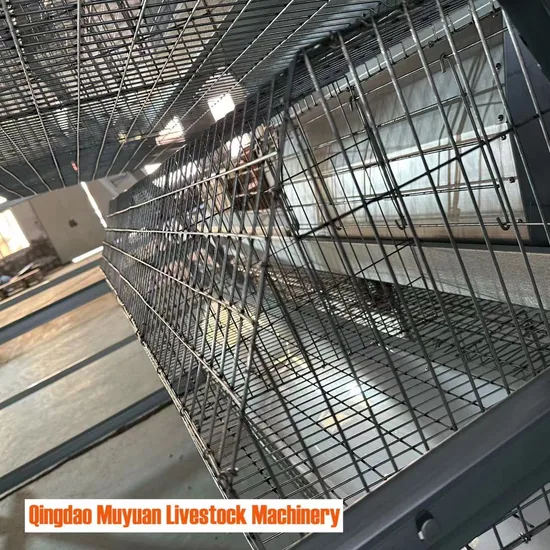

A-type layer breeding equipment

A type poultry equipment has the advantages of simple structure, low cost, it can realize automatic feeding, drinking, manure removing and environment controlling.
Barrier:
The cage mesh and frame adopt hot dip galvanizing process that can achiev strong ant corrosion .
it can fully meet the hot and humid climate, especially in the tropics.

Egg collection system
It is made by egg collection machines, egg collection belts and egg belt clips. Vertical egg collector, surface spray treatment, easy to clean and durable.


Cage mesh material
275g/m2 hot dip galvanized or galfan wire, lifespan is about 15-20 years.
The smooth surface can reduce the rate of disease.

There are two types of laying hens: ring-shaped and intermittent laying hens;
The connection between the egg collecting machine and the egg conveying belt is equipped with a soft egg removal and collection device.
The broken eggs and soft eggs delivered leak into the egg tray below. The egg tray has large space and is easy to collect.
Automatic feeding system

The feeding position is equipped with a
homogenizer, can spread the feeding evenly.
Feeding trough: The feed trough is made of PVC or Aluminized Magnesium Zinc plate material, with reliable quality and small seams with high straightness
The trough support is made of Aluminized Magnesium Zinc plate , which is sturdy and reliable.
The plug-in connection structure makes the slot body sturdy, stable, and precise, and the cage frame more reliable.


A-type Layer Cage
Main data

model	length	depth	front height	back height
A	1870mm	370mm	380mm	330mm
B	1950mm	450mm	430mm	330mm
C	1870mm	400mm	400mm	350mm
D	1800mm	500mm	400mm	350mm

Egg belt
1.Adopt high quality polypropylene, with high strength, high toughness, low elongation , to resist bacteria and fungi, but not suitable for the growth of Salmonella.
2.Non-absorbent unlimited by the humidity and temperature, has adaptability for climate change.

3.V-form of knifing makes the eggs not easy to slip in the conveying, reduce the damage rate.

Manure belt

Adopt the raw material PP, produce various kinds of the PP belt, as the user's requirement of thickness and width,
The PP belt uniform in thickness and the width, there is a little error. The edge of belt is neat.
Anti- Corrosion , resistance to cut, strong tensile strength.
The common manure belt is with thickness of 1.0mm to 1.2mm . the width can be produced as user's needs.

A corner of the company

FAQ:
1. Q: Can the products be customized?
A: We can produce the products according to your detailed requirements.
2. Q: What's the MOQ of the products?
A: we always suggest you the economic quantities for you to save your budgets.
3. Q: What is the material of the cages and what is the thickness of the wire?
A: Our cages have cold galvanized wire kind, and hot galvanized wire kind. Different parts of the cage, we make the different wire diamater, they ranges from 3.6 to 2.3.
4. Q: Do you have other poultry equipment?
A: We have feed silo, warm furnace, temperature controller, medicine adding machine, incubator, feed mill, egg tray and so on.

---
