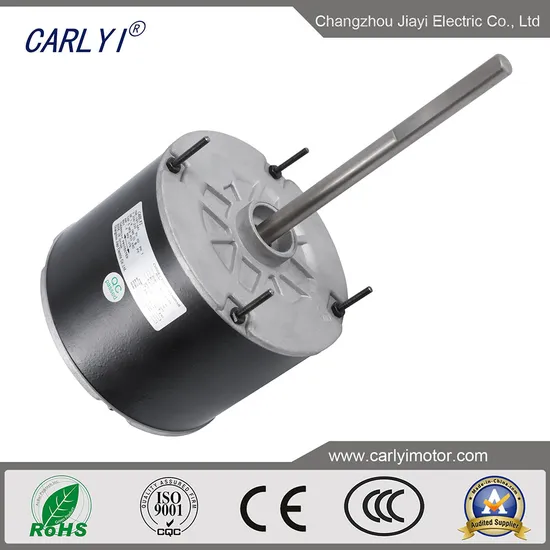

1/4HP Single Phase Electric Condenser AC Ceiling Fan Motor/Air Conditioner Cooler Motor for Commertial Split Outdoor Fans

Product Description

Product Description
Single Phase Electric Condenser AC Fan Motor/Air Conditioner Cooler Motor For Commertial Split Outdoor Fans
The above mentioned specification is representative specification,can also be designed and manufactured according to customer requirements.
Main Technical Data of Single Phase Electric Condenser AC Fan Motor/Air Conditioner Cooler Motor For Commertial Split Outdoor Fans:

Model	Volatage	Frequency	Output	Speed	ROT	CAP	OEM Model
	v	Hz	W	RPM		MDF/VAC
YDK-120-6A	208-230	60	1/6HP	1075/2	REVERSIBLE	5/370	PM310668
YDK-120-6A5	208-230	60	1/6HP	1075	REVERSIBLE	5/370	5KCP39DGS375S
YDK-120-6A6	208-230	60	1/6HP	1075	REVERSIBLE	5/370	FSE1016SV1
YDK-120-6A7	115	60	1/6HP	1075/3	REVERSIBLE	5/370	5KCP39DGP729S
YDK-120-6A8	115	60	1/6HP	1075/3	REVERSIBLE	5/370	A.O.SMITH 9647
YDK-150-6A	208-230	60	1/5HP	1075/2	REVERSIBLE	5/370	PM310543
YDK-150-6A2	220-240	50	1/5HP	900	CW-SE	5/370	PM310544
YDK-185-6A3	208-230	60	1/4HP	1075	REVERSIBLE	5/370	5KCP39EGP697T
YDK-185-6A6	208-230	60	1/4HP	1075	REVERSIBLE	5/370	FASCO D725
YDK-185-6A7	208-230	60	1/4HP	1075/3	REVERSIBLE	7.5/370	FASCO D7909
YDK-185-6A8	208-230	60	1/4HP	1075	REVERSIBLE	5/370	FASCO D904
YDK-185-6A9	115	60	1/4HP	1075	REVERSIBLE	5/370	A.O.SMITH 130
YDK-185-6A10	208-230	60	1/4HP	1075	REVERSIBLE	5/370	5KCP39FGM599T
YDK-185-6A11	208-230	60	1/4HP	1075	REVERSIBLE	5/370	PM3104160
YDK-185-6A12	460	60	1/4HP	1075	REVERSIBLE	5/370	PM3104159
YDK-185-6A13	220/240	50	1/4HP	1050	REVERSIBLE	10/370	PM3104161
YDK-185-6A15	208-230	60	1/4HP	1625	REVERSIBLE	5/370	FASCO D783
YDK-185-6A16	115	60	1/4HP	1625	REVERSIBLE	5/370	FASCO D782
YDK-245-6A2	208-230	60	1/3HP	1075/3	REVERSIBLE	7.5/370	FASCO D923
YDK-245-6A3	208-230	60	1/3HP	1075	REVERSIBLE	7.5/370	FASCO D7908
YDK-245-6A4	208-230	60	1/3HP	1075	REVERSIBLE	7.5/370	5KCP39HGP698T
YDK-245-6A9	208-230	60	1/3HP	1075/3	REVERSIBLE	7.5/370	A.O.SMITH 132
YDK-245-6A10	208-230	60	1/3HP	1075	REVERSIBLE	7.5/370	5KCP39MGG403ET

low noise, Quiet operation, Little vibration	IP 20 protection level, Automatic overload, Thermal protection	High efficiency, wide speed adjustment range	Ball bearing, Reversible plug for easy rotation, Quick installation

Materials
Silent bearing , capacitor , copper wire

Application
Application
commercial split outdoor fans and similar Product Parameters
Drawing of Single Phase Electric Condenser AC Fan Motor/Air Conditioner Cooler Motor For Commertial Split Outdoor Fans:
Terms
Terms:
1. Trade Terms: FOB, CIF, CNF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union.
3. Payment Condition: 50% deposit in advance, 50% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery
Company Profile

Changzhou Jiayi Electric Co., Ltd was established in 2013. Is a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries. The company has a skilled R & D team, and has more than 10 years of motor research and development, design, production and sales experience.With an annual output of 1 million motor production capacity. The new generation of BLDC motors and EC motors developed by CARLYI use a unique high flux and shock absorption design, coupled with high-quality bearings, so that the motor has more torque in the same. CARLYI branded motors have been approved by CCC, ISO9001, CE, RoHS certification.

Packaging & Shipping
Packing and Shiping:
FAQ
FAQ of Single Phase Electric Condenser AC Fan Motor/Air Conditioner Cooler Motor For Commertial Split Outdoor Fans:
Q1: Are you factory?
A: Yes, we have been in designing and providing excellent motors for customers. Our factory production is all under ISO9001 quality management system.
Q2: How long you could prepare samples?
A: Normally 3 days if we have the sample in hand. If customized one, about a week around
Q3: How about batch order production?
A: Normally 15-30 days, the customized or newly developed products may take more half month.
Q4: Do you inspect the finished products?
A: Yes, we do inspection according to ISO9001 standard and ruled by our experienced QC staff.
Q5: What advantage do you have?
A: For the motors, we have long enough of 18months guarantee, and for the service, we offer 24 hours technical support and barrier-free communication.

---
