50HP Farm Agricultural Machinery 504/604/704 4WD Tractor with Implements Farm Tractor

Product Description

Product Description:
1. This series' wheel chassis uses the 2021 newest updated system which assimilated mature technologies from many domestic brands. More reasonable structure minimums the malfunction rate in the process of using. 2. Four-stroke engines with high torque reserve. Engines are from YTO and WeiChai3. (4+1)×2 transmission structure with 8F +2R gears. Eight forward gears and two rear gears 4. Equip with double speed of PTO shaft 540/720 rpm. Adapted to different field type. 5. Adopt full hydraulic steering, independent fuel tank, easy operating and high mobility. 6. Adjustable front and rear tracks meet agricultural needs of different areas. Extra-large water tank and high capacity maintenance-free battery make the machine with best heat-dispersion and starting performance. 7. Steering system uses orbit hydrostatic steering gear with rotary valve. Flexible to operate with a more reliable and stable performance. 8. Differential lock prevent rear wheels skidding when climbing, operating in paddy land and rainy weather. 9. Optional Equipment: single or double hydraulic output system, air brake, side shift, strong hydraulic lifter, streamlined hood, wheel guards, different size tires.

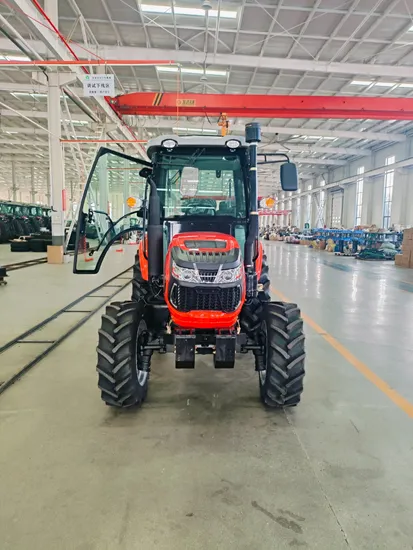

Priduct picture

Model			TK504	TK604	TK704	TK804
Type			4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type
Dimensions of Tractor (mm)	Length		3200	3200	3500	3700
	Width		1515	1515	1610	1610
	Height		1830	1830	1860	1860
	Tread	Front Wheel	1250	1250	1300	1300
		Rear Wheel	1200,1300(usual),1400	1200,1300(usual),1400	1200,1300(usual),1400	1200,1300(usual),1400
	Wheel Base		2010	2010	2200	2200
	Min. Ground Base		325(the bottom of steering horizontal pulling rod)	325(the bottom of steering horizontal pulling rod)	390(the bottom of steering horizontal pulling rod)	390(the bottom of steering horizontal pulling rod)
Min. Usage Mass (kg)			2160	2160	2300	2300
Engine	Model		quanchai498	quanchai4105	quanchai4108T70	quanchai4108T80
	Type		Vertical, water cooled and 4-stroke	Vertical, water cooled and 4-stroke	Vertical, water cooled and 4-stroke	Vertical, water cooled and 4-stroke
	Rated Power(kw)		36.8	44.1	51.4	58.8
	Rated Rev.(r/min)		2300	2400	2400	2400
	Fuel		Diesel Oil	Diesel Oil	Diesel Oil	Diesel Oil
Tire	Front Wheel		6.5-16	6.5-16	7.5-16	7.5-16
	Rear Wheel		11.2-24	11.2-24	11.2-28	11.2-28
Clutch			dry-friction, single disc and two stage	dry-friction, single disc and two stage	dry-friction, single disc and two stage	dry-friction, single disc and two stage
Steering			Hydraulic type	Hydraulic type	Hydraulic type	Hydraulic type
Transmission Box			two shafts, 2×(4+1) composed	two shafts, 2×(4+1) composed	two shafts, 2×(4+1) composed	two shafts, 2×(4+1) composed
Suspension Type			Post Positioned Tri-point Suspension Catalogue II	Post Positioned Tri-point Suspension Catalogue II	Post Positioned Tri-point Suspension Catalogue II	Post Positioned Tri-point Suspension Catalogue II
PTO	Type and Rev.(r/min)		Post-position, half-independent, 540/760 or 540/1000(optional)	Post-position, half-independent, 540/760 or 540/1000(optional)	Post-position, independent, 540/760 or 540/1000(optional)	Post-position,independent, 540/760 or 540/1000(optional)
	Spline Size		I38 Rectangle Spline with 8 teeth	I38 Rectangle Spline with 8 teeth	I38 Rectangle Spline with 8 teeth	I38 Rectangle Spline with 8 teeth

Standard Equipments:
Engine,4 Cylinders,8+2 Gear Shift,With Dual-Stage Clutch,Power Steering,Trailer outlet,
protection plate,Tires:8.3-24/14.9-30,hand throttle wire ,4x4 Wheel Drive,3-Point Linkage,
Rear PTO 540/760, Color follow your need.
Options:
Cab,Canopy,Air Brake,Tilting Draw Bar, Front end loader,backhoe
You can also choose any tools
Packaging & Delivery:
FCL&LCL
Company Information:Telake (Weifang) Agricultural equipment Co., Ltd. mainly produces medium and large horsepower wheeled tractors and supporting various agricultural machinery and tools. The main products of the company cover all kinds of wheeled tractors with 25 horsepower to 260 horsepower, and the corresponding agricultural machinery and tools. At present, the products are sold all over the country and more than ten countries and regions abroad. Among them, the medium-horsepower wheeled tractors are in the leading position in the industry in terms of technology and quality. The company has strong technical force, strong development ability, perfect detection means and complete post-sale service system.
OUR SERVICES 1. Free tool box and free easy damage parts.
2. Warranty time: 18 months after the goods delivery your port.
3. Delivery time: 20 days for one container.
4.1 units in one 20FT container. 3units in one 40FT container.
5. Every color we can do for you.
6. We can do the tractor with your logo in your order. (It Is Free)
7. Payment term: T/T30% in advance, 70% T/T after the shipping, or L/C at sight.

---
