US$850.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Inclining Conveyor
Material Feature
Heat Resistant
Application
Chemical Industry, Grain Transport
Advantage
Simple Operation
Motor
Chinese Famous Brand
Voltage
380V,/415V/as Client′s Demand
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Product Description
Product Description

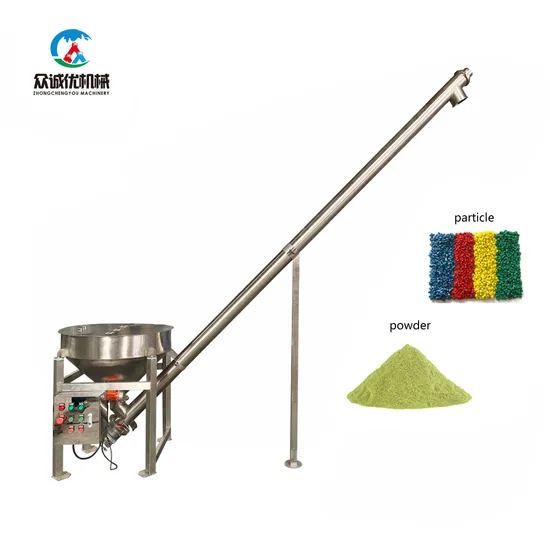

The screw conveyor is a kind of machinery that uses the motor to drive the screw to rotate and push the material to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically, and can be divided into U-shaped screw conveyor and tubular screw conveyor in appearance.
Our Advantages
Product Parameters
Screw conveyor
| LS-100
| LS-160
| LS-200
| LS-250
| LS-315
| LS-400
|
Spiral diameter(mm)
| 100
| 160
| 200
| 250
| 315
| 400
|
Pitch(mm)
| 100
| 160
| 200
| 250
| 315
| 355
|
Speed(r/min)
| 100
| 120
| 90
| 90
| 75
| 75
|
Conveying capacity Q Φ=0.33(m³/h)
| 2.2
| 7.6
| 11
| 22
| 36.4
| 66.1
|
Power Pd 1=10m(kw)
| 1.1
| 1.5
| 2.2
| 2.4
| 3.2
| 5.1
|
Power Pd 1=30m(kw)
| 1.6
| 2.8
| 3.2
| 5.3
| 8.4
| 11
|
Speed
| 120
| 90
| 75
| 75
| 60
| 60
|
Conveying capacity Q Φ=0.33(m³/h)
| 1.9
| 5.7
| 18
| 18
| 29.1
| 52.9
|
Power Pd 1=10m(kw)
| 1.0
| 1.3
| 2.1
| 2.1
| 2.9
| 4.1
|
Power Pd 1=30m(kw)
| 1.5
| 2.3
| 4.5
| 4.5
| 7
| 8.9
|
Application industry
Packaging & Shipping
Certifications
FAQ
Please tell me your production needs , we will provide price to you soon.
1.What material will you convey for?
2.What is the size of your material ?
3.Bulk Density: _____kg/m3 or ____g/cm3 . If convinient,please attach your raw material photo.
4.Level or inclined? Discharge outlet height?
5.What's your output capacity per hour?
6.Do you need add a hopper, if it is, please tell me the hopper volume you want ? _____L
7.Stainless steel 304/316 or carbon steel ?
>>
