China New Design Metal Mould CNC Milling Machine Copper Aluminum Shoes Mould Engraving

Product Description

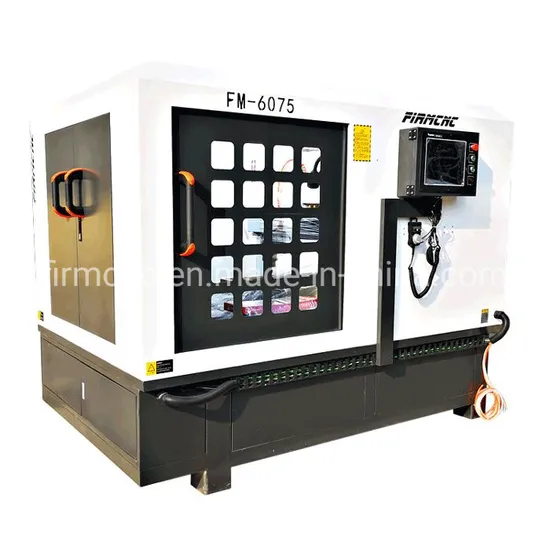

China new design metal mould cnc milling machine copper aluminum shoes mould engraving

Machine in workshop
Features:
1. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.
2. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
3. Vertical bracket, removable gantry, imported rack gear and ball screw transmission, Taiwan square linear orbit, can engrave 2mm-3mm little letter.
4. The CNC milling machine adopts advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
5. Automatic oil lubrication system is easy to operate by one key press, equiped with dust proof and water proof for XY axis, make the maintenance operation easily.
6. Professional high flexibility anti-bending cable, the number of anti-bending can be up to 70,000 times.
7. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
8. Good three-axis and dust-proof structure to ensure that the machines longer service life.
9. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
10. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
11. High-performance driven motor to ensure that the machines high speed and accurancy.
12. The machine body is strong, rigid, high precision, reliable and durable. Whole steel structure, after high-temperature tempering, good rigidity and stability.
Samples:
Technical Data:

Performance index	FM6075
X,Y working area	600×750mm
Z working area	200mm
Max travel speed	4m-5.5m/min
Max engraving speed	2m-3m/min
Resolution ratio	0.005mm
Repositioning precision	0.01mm
Max feeding heigh	150mm
Command	G Code *.mmg*.plt
Surroundings for software	windows98/2000/xp
Power	AC220V/60Hz
Main axle power rate	1.5kw Constant Water Cooling Spindle
Spindle speed	0-24000rpm/min
Work Mode	Servo system

Main configuration
Company information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
our machine including CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers,
4 axis CNC routers and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines,
laser cutting machines and laser welding machines), CNC milling machines, CNC plasma cutting machines,
CNC machining centers, CNC wood turning lathe machines, CNC spare parts and other CNC machines etc.
Packing & Shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
JINAN FIRM CNC EQUIPMENT CO.,LTD
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-1395411709

---
