Biodegradable High Speed ABA 3 Layers Co-Extrusion Blown Film Machine Agriculture Polyethylene Plastic Film Blowing Extrusion Machine Price

Product Description

Biodegradable High Speed ABA 3 Layers Co-Extrusion Blown Film Machine Agriculture Polyethylene Plastic Film Blowing extrusion Machine Price
We are Film Blowing Machine manufacturer from china, our business is mainly to produce and sell different type Film Blowing Machine, We also can customized product according to the client's requirement. We are always try our best to become the good Film Blowing Machine manufacturer, Welcome the customer from all over the world to contact with us. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
Product Description:
Wholeheartedly for the new and old customers to provide quality and reliable products and satisfactory service, ABA film blowing machine, in the production of HDPE, LDPE and LLDPE material, has a unique advantage. The physical strength of the film is improved by co-extrusion. its two hosts supply three-layer extrusion. One with internal filling layer. You can decrease one of the hosts configuration for the purpose of reducing the cost, saving energy and low consumption. At the same time, the internal filling layer can be added to the recovery of the material and calcium carbonate which accounts for more than 80% of the total output. It can greatly reduce the production process of raw material costs to provide customers with stronger market competitiveness
Optional Equipment: Double winderRotary die headAuto loaderDouble lip air ringAir shaftCorona treatmentFast screen changerAir compressorAll roller pneumatic type
Main Technical Parameter:

Model	MF-ABA45	MF-ABA50	MF-ABA45/50	MF-ABA55	MF-ABA65
Suitable Material	HDPE	HDPE	HDPE	HDPE	HDPE
Max Film Width(mm)	800	800	1000	1200	1500
Film Thickness(mm)	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08
Max Extrusion Output HD	100kg/hr	80kg/hr	80kg/hr	120kg/hr	150kg/hr
Extrusion Unit
Gear Box	146x2	173x2	173/180	180x2	200x2
Screw Diameter(mm)	Φ45x2	Φ50x2	Φ50/55	Φ55x2	Φ65x2
Screw L/D Ratio	30:1	28:1	28:1	28:1	28:1
Screw's Material	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	200Wx3x2	200Wx3x2	200Wx3x2	200Wx3x2	200Wx4x2
Thermo Control(zone)	3x2	3x2	3x2	3x2	4x2
Driving Motor(kw)	15x2	18.5x2	18.5/22	22x2	30x2
Extrusion Die
Die Size(mm)	HD:80/100	HD:80/100	HD:Φ100/120	HD:Φ120/150	HD:Φ200/220
Screw Changer	Standard manual	Standard manual	Standard manual	Standard manual	Standard manual
Thermo Control(zone)	3	3	3	3	3
Air Ring	Φ820mm Dual Air Ring	Φ820mm Dual Air Ring	Φ820mm Dual Air Ring	Φ820mm Dual Air Ring	Φ820mm Dual Air Ring
Cooling Blower(kw)	5.5	5.5	5.5	5.5	7.5
Center Steady Stick	1 PCS	1 PCS	1 PCS	1 PCS	1 PCS
Take-UP Unit
Roller Width(mm)	Φ138x850	Φ138x850	Φ138x1100	Φ138x1300	Φ165x1600
Embossing Roller Width	750mm	750mm	950mm	1200mm	NO
Take-UP Motor(kw)	1.1	1.1	1.1	1.5	1.5
Take-UP Speed(M/min)	10-80	10-80	10-80	10-60	10-60
Height adjustable type	700mm	700mm	700mm	700mm	700mm
Winding Umit
Type OF Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder
Roller Width(mm)	900	900	1000	1300	1600
Winding Motor(kw)	1.5	1.5	1.5	1.5	1.5kw
Winding Speed(M/min)	10-80	10-80	10-80	10-60	10-60
Voltage	380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE
Cover Dimensions(m)	6.2x2.75x5.2	6.2x2.75x5.2	6.5x3x5.2	6.5x3x5.5	7x3.2x6.5

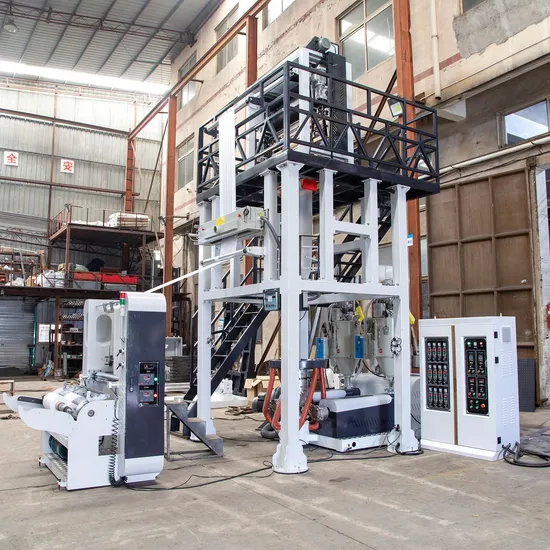

Machine Details
Company Profile
Certifications
Our Exhibitions
Packaging & Shipping
After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
Warmly welcome you to contact us freely !
FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.

---
