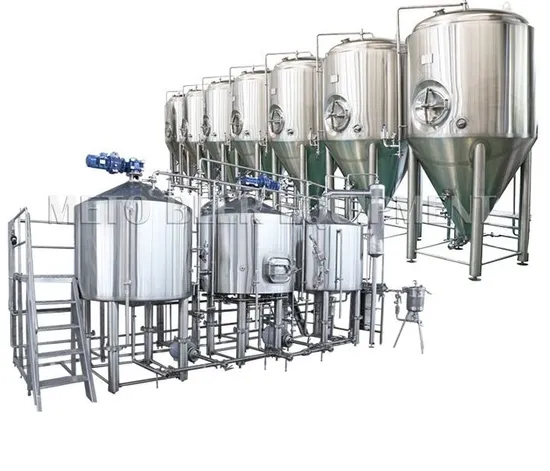

500L 1000L 2000L Beer Equipment Turnkey Project Brewery Equipment

Product Description

500L 1000L 2000L Beer Equipment Turnkey Project Brewery equipment METO Craft Beer Equipment is a professional manufacturer of craft beer equipment. Our company
has integrated design, research, development, production, sales, installation, commissioning, and after
-sales service, is committed to become the world first-class craft beer equipment supplier.

2 Vessel Brewhouse	3 Vessel Brewhouse
Mash/Lauter tun+Brew kettle/whirlpool tank	1.Lauter&storage tank+brew kettle/whirlpool tank 2.Lauter&whirlpool tank ,+brew kettle 3.Lauter&HLT +brewkettle/whirlpool tank
Combined 3 Vessel Brewhouse	4 Vessel Brewhouse
1.Mash/lauter tun+ brew kettle +whirlpool tank 2.Mash tun+ lauter tank + brewkettle/whirlpool tank	Mash tun +lauter tank + brew kettle+whirlpool tank

Fermentation Tank Main Composition

Butterfly head,Top /Side Pressure manway , Dimple plate cooling jackets , L pipe (1piece/2 pieces ) ,Safety Valve , Water-seal pressure valve, Sterile sampling valve , Sanitary butterfly valve ,360°CIP Ball , Inlet and outlet of cooling media , PT100 , Wort outlet , drain outlet , Bottom removable device,Stainless steel Leg, Adjustable pa

Types: 1HL-300HL,1BBL-300BBL(customized by your requirements)

1000L Beer Brewry System
Brewing System	Components	Capacity	Specification
Grinding System	Miller	300KG/H	Double Roller,Noise<60db
Heating System	Boiler	100KG/H	Electric,Gas,Oil,Coal Type/CE certification
Brewhouse System	Mash/Lauter tun	1000L	Mashing Process:Decoction.Infusion.Multi-step infusion Heating source:Steam,Electric,Gas SUS304/Red copper Interior:2.5-3mm Exteior:3-4mm
	Brew Kettle/ Whirlpool Tank	1000L
	Hot Water Tank	1500L
	Heat exchanger	10SQM	Stainless steel plate
Fermentation System	Fermentation Tank	1000L/2000L	Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2
	Yeast Adding Tank	10L	SUS304 Stainless Steel
Cooling System	Glycol Water tank	3000l	Equiped with PU level indicator
	Chiller	10HP	UL/CE certified electric elements,Copeland compressor
	Pump	3T
Cleaning System	Disinfection Tank	100L	SUS304 full welded
	Alkali Tank	100L
	Pump	3T
Control System	Control Cabinet	Manual/PLC/ HMI	Manual/Semi-automatic/Automatic
Optional	Auger System
	Grain Case
	Grist Hydrator
	Piping flow panel for Brewhouse
	Brewhouse Separate PLC Controller
	Customized
Technical Parameter	Power: Voltage:Cusomized Floor space:

Company Profile
Customer case
Packaging Details
1.LCL/FCL(20GP/40GP/40HQ).
2.Packed with plastic film in fumigation free wooden case or fixed with iron frame.
3.Up to export standard, suitable for delivery.
4.Customer's requirements available.
FAQ
1.Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in this field for 10 years.

2.Q:What exactly does the 36 month warranty cover?
A:36 month warranty cover all the main tank.one years for the accessories and spare parts.

3.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.

4.Q:Is the 15 day set-up by your engineers mandatory, or can we opt to pass on that service?
A:Yes ,you can,we will offer the manual or video to let you know how to connect the equipment.

5.Q: How to calculate the daily output? How many fermenters do I need?
A: Usually theequipment models such as 300L and 500L are only 300L, 500L wort for mashing capacity. Beer production is according to your fermentation process requirements and the number of fermenters configured.
6.Q: How you pack the products?
A: Normally as the export standard packaging or as you required.
7.Q: What is your available port of shipment?
A: Qingdao port,shanghai etc.

---
