US$5.60-22.34
|
1 Piece
(MOQ)
|
Basic Info.
Installation
Parallel Arrester
Operation Voltage
Low Voltage
Certification
ROHS, ISO9001, CCC, CE
Max. Continuous Operating Voltagemcov
420V~
Nominal Discharge Current in
10ka
Max. Discharge Current Imax
20ka
Protection Level up
1.8kv
Follow Current Interrupt Rating
300A
Connection
by Screw Terminals: 6-35mm^2
Terminal Screw Torque
2.5nm
Mounting
DIN Rail 35mm(En60715)
Degree of Protection
IP20
Transport Package
Carton Box
Production Capacity
500000
Packaging & Delivery
Package Size
7.20cm * 9.00cm * 6.80cm
Package Gross Weight
1.000kg

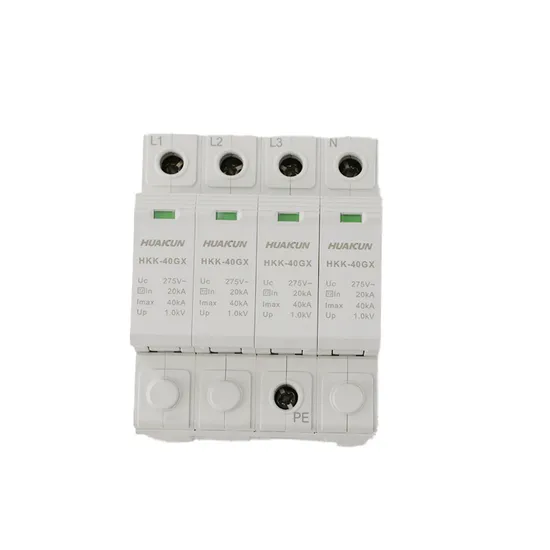

Product Description
Product Description
Product Feature 1.Use High-efficiency varistor nano-alloy graphite material, fast response time; 2.Suitable for TT, IT, TN and other power supply systems, used for T2 protection; 3.With remote communication alarm contact, convenient remote monitoring protector installed state; 4.Large inrush current and low residual error; 5.Standard 35 mm rail installation; 6.Easy installation, simple maintenance.
Installation matters 1.Instructions for breaking away from failure When the surge protector is overheated or broken down due to deterioration, the failure release device can automatically disconnect it from the grid, and red (window) signals (a normal window display for the green), which suggests that the protector has failure need to be replaced immediately. 2.the remote communication alarm device Remote communication contact for a normally open - a normally closed contact, when the failure of one or more modules, dry contact state.
| Max. continuous operating voltage Uc(V~) | 420V~ |
| Nominal discharge current In(kA) | 20kA |
| Max. discharge current Imax(kA) | 40kA |
| Protection level Up(kV) | 1.8kV |
| SPD special backup protector (disconnector) (kA) | 80kA |
| Response time (ns) | <25 |
| Dimensions (width*height*depth) (mm) | 72*90*65 |
| Working environment | -40~+70ºC,Relative humidity<95%(below 25ºC) |
| Protection type | Type 2 |
>>
