Prestressed Easy Operation 120X1200 Hollow Core Slab Machine

US$6,500.00-7,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
120x1200
Shotcrete Type
Semi-Dry
Machining Process
Hollow Core Slab Production Line
Structure
Push Type
Productivity
65-70m/Hour
Feeding Height
1400mm
Vibrating Amplitude
Motor Vibration
Condition
New
Color
Yellow
Using Material
Concrete
Voltage
380V/50Hz
Feature
Prestressed
Advantage
Large Productivity
Specification
2.5x1.5x1.4
Origin
Dezhou
Production Capacity
300 Sets/Year

Product Description

Cement hollow core slab making machine works on the long-line table, using the high-strength low-relaxation steel strand as the guide, using the pushing work method to forming the concrete hollow-core slab. The slab have the advantages of smooth surface, high-density structure, The concrete hollow-core slab mainly used on the larger bay workshop, school, hospital, shopping mall, office building, bulk storage plant etc. Strengths of the precast prestressed concrete slabs-

1.Advanced and matured technology of the precast prestressed concrete slab production line

2.Fast molding speed of the precast prestressed concrete slab machine:1.2-1.4m/min

3.Low labor strength and high efficiency of the precast prestressed concrete slab production line

4.Long service life for the precast prestressed concrete slab machines

Slabs Machine-
Model
 Power
(kw)
 Dimension
(m)
 Holes
 Voltage
(v)
 Strand with maximum load
 Speed
(m/h)
 Weight
(t)
200*600
 10.5
 2.3*1* 0.9
 4
 380
 12.7mm*5
 65~70m/h
 2.3
200*900
 15
 2.7*1.15*1
 5
 380
 12.7mm*7
 60~65m/h
 4
250*900
 18.5
 3.8*1.15*1
 5
 380
 12.7mm*7
 60~65m/h
 4.5
150*900
 15
 2.6*1.6*1
 9
 380
 12.7mm*12
 65~70m/h
 3.8
300*900
 22
 3.36*1.15*1.2
 5
 380
 12.7mm*6
 60~65m/h
 5.5
300*1200
 36
 3.5*1.85*1.2
 6
 380
 12.7mm*12
 60~65m/h
 6
150*1200
 18.5
 2.9*1.5*1
 13
 380
 9.5mm*14
 65~70m/h
 3.3

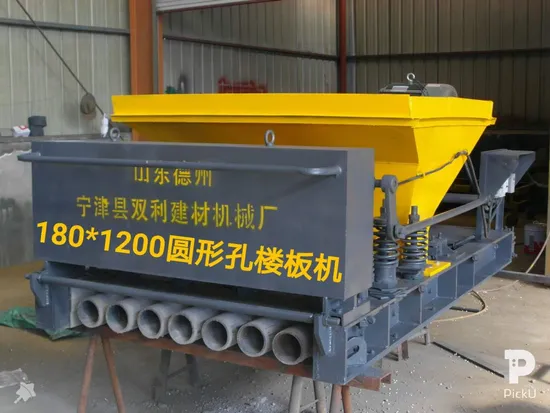

180*1200
 18.5
 2.9*1.5*1.2
 11
 380
 12.7mm*12
 60~70m/h
 3.3
200*1200
 22
 3.7*1.5*1.5
 10
 380
 12.7mm*10
 65~70m/h
 5.3
250*1200
 33
 3.7*1.7*1.5
 8
 380
 12.7mm*10
 60~65m/h
 6.2


Load and span of precast prestressed concrete slabs-

Slab size
(Thickness x Width)(mm)
 Max. length (m)
 Max. load (Kn/m2)
 Dia. of steel when max. load (mm)
 No. of steel when max. load
 Holes No.
100x600
 5.1
 8.11
 Φ7
 5
 6
120x600
 6.0
 8.86
 Φ7
 6
 5
150x600
 7.5
 10.24
 Φ9.5
 5
 4
180x600
 9.0
 16.16
 Φ12.7
 4
 3
100x900
 5.1
 9.76
 Φ7
 10
 10
120x900
 6.0
 8.86
 Φ7
 9
 8
150x900
 7.5
 10.24
 Φ9.5
 10
 6
180x900
 9.0
 16.16
 Φ12.7
 9
 5
200x900
 10.2
 13.22
 Φ12.7
 7
 6
250x900
 12.6
 11.10
 Φ12.7
 7
 6
300x900
 15
 10.83
 Φ12.7
 8
 5

Company Profile

Ningjin County Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at Ningjin County, Shandong Province,China.
1.Our products have a particularly good reputation in more than a dozen provinces and cities nationwide. The export has been increased recent years, including India, Russia, Myanmar, Uzbekistan, etc.
2.We provide the stability of product quality, timely delivery, excellent after sale service, followed by customers' trust, wide market and a good reputation.
