Automatic Tube Device Crane Glass Lifter Long Lifting Stroke Laser Cutter Feeding Loading

Product Description

Vacuum lifter supplier support OEM&ODM service
Vacuum lifters are the ideal way to make production processes and transports easier.Whether you want to
transport steel,glass-elements,stone or wood...fromA to Byou will find the perfect solution here at Easytech
- the leader of sophisticated vacuum transport techniques.

Features:

Secure	Damage-free gripping by using vacuum lifting.
Easy to use	Simple operation, improve efficiency. Minimization of downtime dut to employee injury. Increase in employee motivation. Only one person for handling.
Wide Applications	Apply to fast and frequent lifting and moving of workpieces weighing to stone plate, glass, metal, aluminum, PVC plate, acrylic sheet and so on.
12 months	12 months guarantee, all-round services
Multiple	Multiple modes of energy supply plug-in and pneumatic, suitable for most of the working environment.
MAX 1T	Max capacity up to 1T, can achieve most of light or heavy load workpieces loading and unloading tasks.

General Descriptions:

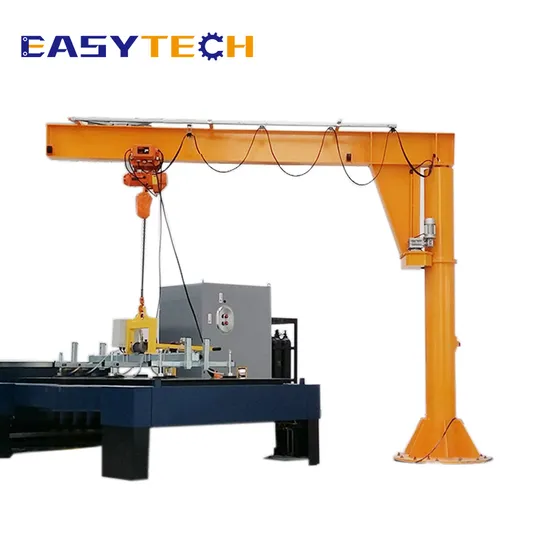

The Vacumaster, is a kind of industrial handling system, by the column, the slewing arm, the slewing drive device and the electric hoist composition, light self-weight, big transportation span, high lifting weight capacity, strong practicability.
The carne is fixed on the concrete foundation by the anchor bolt, and the handling system is driven by the cycloidal gear reducer to rotate. The electric hoist runs in a straight line left and right on the I-beam of the cantilever and lifts the heavy objects.
Built-in walking mechanism adopts special engineering plastic walking wheel with roller bearing, with low friction and brisk walking; The small size of the structure is especially beneficial to improve the hook travel.
This handling system is a new generation of light lifting equipment made to adapt to modern production, with high reliability of the chain electric hoist is especially suitable for short distance, frequent use, intensive lifting operations, with high efficiency, energy saving, labor saving, small area, easy to operate.
This vacumaster is used together with our vacuum lifter. The vacuum lifter equipment is equipped with vacuum suckers and multi-point adsorption vacuum surfaces to ensure the lifting force on workpieces. Flexible suction pad position by adjust the rectangular clamp. A variety of structure suction cups layout is realizable for different sizes of workpiece and all kinds of vacuum surfaces.
Using Easytech handling systems to load and unload punching machines, bending machines or CNC laser cutting systems reduces downtime while protecting the surface of sensitive workpieces.

How to choose a rocker arm lifter?
lWhat are you going to lift, size and weight of the workpiece?
lWhat are you going to do with your workpiece? To load and unload punching machines, bending machines or CNC laser cutting systems?
lWhat's the minimum working space/radius, plant height of your workshop? What's the subgrade situation of your workshop?
lWhich model are you prefer to use, pneumatic or electric type?

The standard model covers a load of up to 500kg and can also be customized to extend the rocker arm
and crane, increasing the working radius.

	Vacumaster Electric Type
Model	A-Came	B-Rocker Arm	C-STROK	Capacity	Max Workpieces	Air Pressure	Voltage	Size(L*W*H mm)	Suction Pad(pcs/dla)
ETJSB-D300-B3M	3430mm	3000mm	0-1600mm	300kg	3000*1500mm	/	380V	3430*3000*2000	8pcs/200mm
ETJSB-D300-B4M	3430mm	4000mm	0-1600mm	300kg	3000*1500mm	/	380V	3430*3000*2000	8pcs/200mm
ETJSB-D500-B3M	3430mm	3000mm	0-1600mm	500kg	3000*1500mm	/	380V	3430*3000*2000	8pcs/200mm
ETJSB-D500-B4M	3430mm	4000mm	0-1600mm	500kg	3000*1500mm	/	380V	3430*3000*2000	8pcs/200mm
ETJSB-D1000-B3M	3430mm	3000mm	0-1600mm	1000kg	3000*1500mm	/	380V	3430*3000*2000	8pcs/200mm
ETJSB-D1000-B4M	3430mm	4000mm	0-1600mm	1000kg	3000*1500mm	/	380V	3430*3000*2000	8pcs/200mm

FAQ

1.Are you a factory or trading company?

We are manufacturer of metal sheet lifters, glass lifters, crane lifters, auto feeding riveter, Spin Press Riveting Machines and welding machine.

2.How can I get the price?

-We usually quote within 24 hours after we get your inquiry. -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

3. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

4.What is your lead time?

-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

5.What is your payment term?

-T/T, Western Union, MoneyGram, and Paypal. This is negotiable.

6.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.

7.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ; -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
