MCX653106A-Ecat-Sp Connectx-6 Vpi Adapter Network Card Hdr100/EDR/100gbe

Product Description

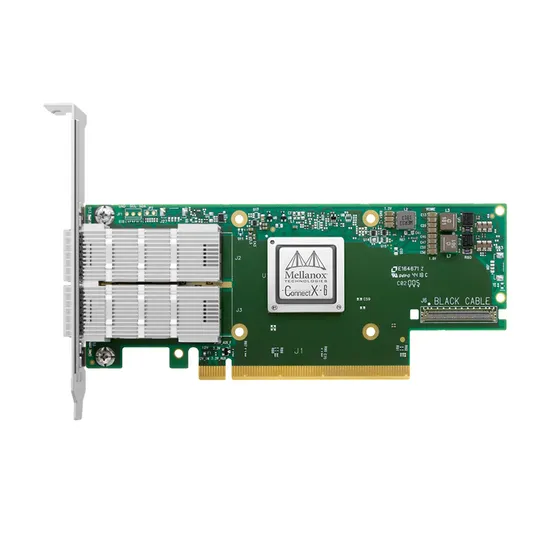

NVIDIA MCX653106A-ECAT-SP ConnectX-6 VPI Adapter Card HDR100 EDR InfiniBand and 100GbE Dual-Port QSFP56 PCIe 3.0/4.0 x16 Tall Bracket (-SP indicates Single Pack) ConnectX-6 VPI Card HDR100 EDR InfiniBand and 100GbE Ethernet Adapter Card ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of HDR100 EDR InfiniBand and 100GbE Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI series supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
Features Up to HDR100 EDR InfiniBand and 100GbE Ethernet connectivity per port Max bandwidth of 200Gb/s Up to 215 million messages/sec Sub 0.6usec latency Block-level XTS-AES mode hardware encryption FIPS capable Advanced storage capabilities including block-level encryption and checksum offloads Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports Best-in-class packet pacing with sub-nanosecond accuracy PCIe Gen 3.0 and Gen 4.0 support RoHS compliant ODCC compatible Benefits Industry-leading throughput, low CPU utilization and high message rate Highest performance and most intelligent fabric for compute and storage infrastructures Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV) Host Chaining technology for economical rack design Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms Flexible programmable pipeline for new network flows Efficient service chaining enablement Increased I/O consolidation efficiencies, reducing data center costs & complexity

---
