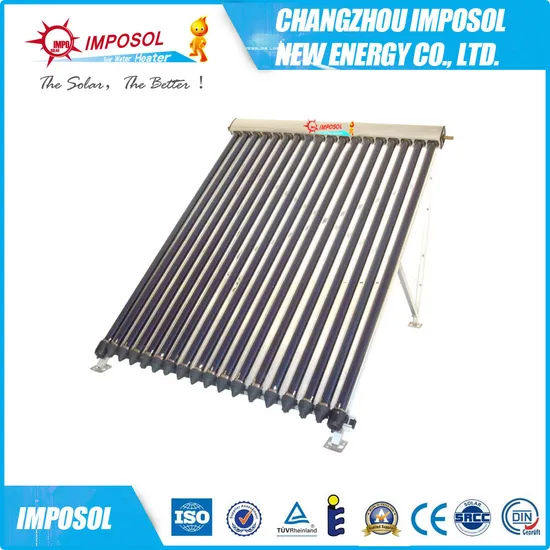

Split Vacuum Tube Solar Energy Collector

Product Description

Heat Pipe (24mm) Vacuum Tube 58-1800mm Pressure Solar Collector
Main specifications :
Inner manifold: Copper header pipe , Potable water rated.Maximum pressure: 1000kPa, Size 45mm x 1mm thickness
Outer manifold: Aluminium alloy with Anodized or Powder Coated Finish , thickness 2mm
80mm distance between vacuum tubes
Insulation: High quality Glass Wool (K = 0.043W/mK), 50mm
Vacuum tube: Borosilicate 3.3 twin wall glass 58x1800mm, AlN/AIN-SS/CU coating coating,Vacuum: P<5x10-3 Pa, 58mm x 1800mm
Heat pipe: High purity "oxygen free" copper pipe with Aluminum fin ,Startup temperature -45 C ;
24mm diameter*55mm length condenser , 1mm thickness; 8mm diameter*1650 mm length Body,0.6 mm thickness
Frame: 6005-T5 Aluminium Alloy 2.5mm thickness
Stainless steel SUS 304 bolts
Rubber Components :HTV Silicone Rubber (UV stabilised)
Connection Options:22mm OD copper (Europe)
Optional accessories :
Reflector:aluminum component

Model	Light Area(m2)	Vacuum Tube			Capacity (Liters)	20GP/40HQ Loading Qty
		Ø(mm)	L(mm)	NO .
IPRB B 581810 Pro	1.68	58	1800	10	85-100	174/423
IPRB B 581812 Pro	2.17	58	1800	12	100-120	153/372
IPRB B 581815 Pro	2.65	58	1800	15	125-150	128/311
IPRB B 581818 Pro	3.12	58	1800	18	150-180	102/251
IPRB B 581820 Pro	3.44	58	1800	20	170-200	95/230
IPRB B 581824 Pro	4.08	58	1800	24	200-240	82/200
IPRB B 581825 Pro	4.24	58	1800	25	210-250	79/192
IPRB B 581830 Pro	4.89	58	1800	30	250-300	67/163

Model	Lighting Area(m2)	Vacuum Tube			TankNet Capacity(Liters)	Overall Capacity (Liters)	20GP/10HQLoadingQty (sets)
		Φ(mm)	L(m)	NO.
IPJG47581810-GS/SS	1.4	58	1800	10	85	116	71/172
IPJG47581812-GS/SS	1.68	58	1800	12	100	137	32/150
IPJG47581815-GS/SS	2.1	58	1800	15	125	172	52/125
IPJG47581816-GS/SS	2.24	58	1800	16	135	185	48/116
IPJG47581818-GS/SS	2.52	58	1800	18	150	206	43/105
IPJG47581820-GS/SS	2.8	58	1800	20	170	232	39/96
IPJG47581824-GS/SS	3.36	58	1800	24	200	274	34/82
IPJG47581830-GS/SS	4.2	58	1800	30	250	343	28/68
IPJG47581836-GS/SS	5.04	58	1800	36	300	412	23/57
IPJG47471515-GS/SS	1.35	47	1500	15	110	134	62/152
IPJG47471518-GS/SS	1.62	47	1500	18	135	164	54/131
IPJG47471520-GS/SS	1.8	47	1500	20	150	182	50/122
IPJG47471524-GS/SS	2.16	47	1500	24	175	213	43/104
IPJG47471530-GS/SS	2.7	47	1500	30	220	268	34/84
IPJG47471536-GS/SS	3.24	47	1500	36	260	318	29/71

Company information
Changzhou Imposol New Energy Co., Ltd. is an environmental company with rich experience in the solar energy research and development, production and marketing. We specialize in manufacturing various types of solar water heaters, characteristic products are copper coil solar water heaters, Jacketed type tanks, heat pipe solar collectors, U-type solar collectors. Also sales of air source heat pump heating engineering related water tank, project manifold, accessories, etc.
We won ISO9001:2000, CE, SGS, SOLARKEYMARK, SRCC certificate since the company established. In 2013 was rated as "high-tech enterprises in Jiangsu province". At the same time won the "Changzhou well-known famous brand". For many years by the national quality supervision departments rated the quality qualified products. We has declared by a dozen patents of invention and utility model.
Our products are mainly export-oriented. Now we have more than 1000 foreign customers, exported to more than 80 countries. And supporting OEM production for domestic brand enterprises, large enterprise. With heavy quality, good reputation to win customer consistent high praise.
Imposol believe in "quality bring future". its forward-looking design, novel and practical, elegant style has become a peer leader, industry model.
Thermal project application
1.Split villa water heater system
2.Independent project Systems
3.Senior household hot water system
4.Centralized collector heat storage system
5.Centralized collector household water heating system
6.Centralized collector water heating system

---
