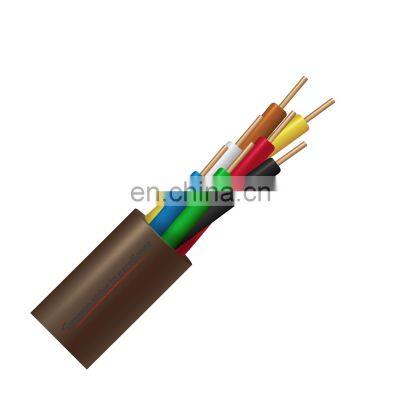

Thermostat Control Cables A basic thermostat for heating and cooling uses four or five wires to control the HVAC system. The white (W), green (G) and yellow (Y) wires connect to the heating, air flow and cooling systems, respectively. The red cooling and heating (Rc and Rh) wires are connected to create a four-wire system when both cooling and heating systems are combined and connected to a single 24V alternating current (AC) transformer. Thermostat Cables Construction:* Conductors:Solid Bare Copper, 18 AWG and 20 AWG* Insulation: PVC or Polypropylene insulation* Jacket: PVC Brown Color(Normally)* Temperature Rating: 60°C* Voltage Rating: 150 volts* Packing: 100m drum or customized* OEM is availableCharacteristicsNo. CoresConductor Size (AWG)Insulated diameter (mm)Overall dia. (mm) 2180.057” (1.45mm)0.148” (3.76mm)3180.057” (1.45mm)0.150” (3.81mm)4180.057” (1.45mm)0.173” (4.40mm)5180.057” (1.45mm)0.188” (4.80mm)6180.057” (1.45mm)0.197” (5.00mm)8180.057” (1.45mm)0.217” (5.50mm)10180.057” (1.45mm)0.248” (6.30mm)12180.057” (1.45mm)0.295” (7.50mm)Thermostat Control Cables These cables are used in a wide variety of applications, including thermostat controls, heating and A/C installations, remote controls, signal systems, intercoms, and various other low-voltage uses.Application: Thermostat Wire is part of Portable Cord and Power Cable.* Thermostat Control* Heating and A/C installations* Touch-plate systems* Burglar alarms* Intercoms* Door bells* Annunciator systems* Remote controls* Signal systems* Low-voltage installationsMore Cables : * Are you a manufacture or a trading company?Sanyuan cable Company is a professional cable manufacturer with 23 years production experience.* Whether these products quality assures?Most of cables are certificated. Also, we have strict QC,all products are 100% tested before delivery.Quality is assured.* When I want customized products,how to do?We have Equipped with professional equipment,technicians & skilled employees, OEM & Customized service is welcome.Drawing/Samples are required.* Can you send a sample for us to test?1, If we have inventory and total amount is small,it's free.2, If we don't have inventory,sample and freight cost have to be paid by your esteemed company.But we will return the sample cost to you when we receiving your initial order.* If I want to purchase,how to pay?Generally we do T/T in 30% deposit before production,70% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.* After I pay,what about the lead time and shipping method?Goods can be delivered by air,by express or by sea;International Express as FedEx,UPS,DHL,TNT;You can choose the best the best way as you wish.As for the Lead time,10~20 days.
>>
