| US$100,000.00 | 1 Piece (MOQ) |

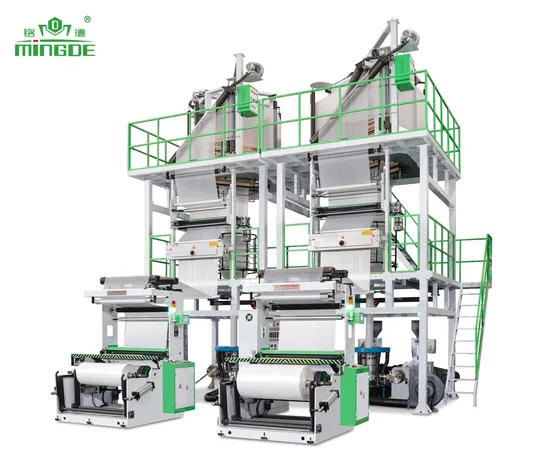

| Model | MD-ABA/V55 |
| Suitable Material | HDPE,LDPE,LLDPE |
| Max Film Width(mm) | 1000 |
| Film Thickness(mm) | 0.01-0.08 |
| Max Extrusion Output HD | HD: 140kg/hr |
| Extrusion unit | |
| Gear Box | 180×2 |
| Screw Diameter(mm) | φ55×2 |
| Screw L/D Ratio | 32:1 |
| Screw's Material | Bi-matical |
| Barrel's Material | 38crm |
| Barrel's Cooling Fan | 200W×3×2 |
| Thermo Control (zone) | 3×2 |
| Driving Motor (kw) | 22×2 |
| electric pressure meter | with |
| Extrusion Die | |
| Die Size (mm) | HD:φ120 |
| Screen Changer | fast screen changer |
| Thermo Control (zone) | 3 |
| Air Ring | double air ring |
| Cooling Blower (kw) | 5.5 |
| Center Steady Stick | 1 |
| Take-UP Unit | |
| Roller Width (mm) | φ165×1100 |
| Embossing Roller Width | no |
| Take-UP Motor (kw) | 1.1 |
| Take-UP Speed(M/min) | 10-80 |
| Height adjustable type | no |
| Winding Unit | |
| Type OF Winder | single full automatic winder |
| EPC | with |
| Roller Width (mm) | 1100 |
| Winding Motor (N.M) | 1.5KW |
| Winding Speed(M/min) | 10-80 |
| Voltage | 380V,3P,50HZ |
| Cover Dimensions (m) | 7×3.5×6.7 |
