Welcome to visit

12V 24V 5000lbs off Road Electric Winch

US$113.50
100-999 Pieces
US$108.50
1,000+ Pieces

Basic Info.

Model NO.
F04007
Pull Direction
Forward
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Universal
Certification
TUV, GS, CE, RoHS
Application
Universal
Voltage
12V
Power Source
Electric
Power Cord Length
3m
Capacity
5000lbs, 5000lbs

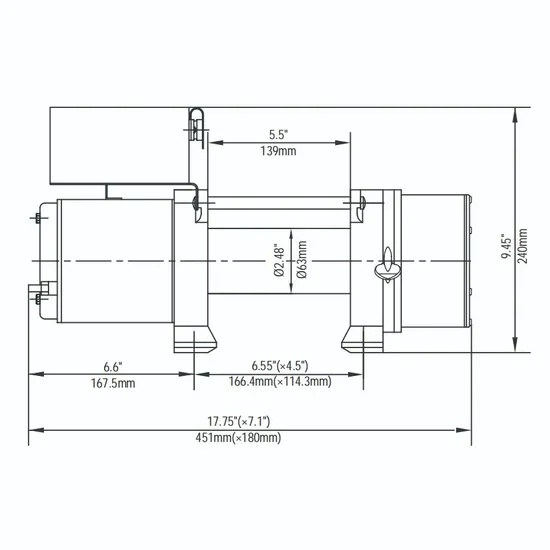

Overall Dimensions
451mm*180mm*240mm
Transport Package
Carton
Specification
6.4mm*24mm
Trademark
Autoall
Origin
China
HS Code
7616999000
Production Capacity
50000 PCS/Week

Product Description


Electric winches are most commonly used to pull an automobile, boat, crane, truck, or other piece of equipment from a problematicarea.
If a car goes off the road and down into a ravine, for example, trucks with electric winches are used to hook the car and pull it back to the road. Electric winches can also be used to tug boats to safety. There have even been rare instances in which electric winches have helped save large animals from tricky holes and pits.
Electric Winches come in different shapes and sizes.
A cable is attached to a spool, which is attached to the motor. A gear lever turns the spool in order to release the cable. Once the cables of an electric winch are extended to the vehicle or object in need of towing. the gear levers are pushed in the opposite direction of the object. This causes the spool to wind up. As the spool winds, the cables are pulled back in. This causes the object to be pulled safely to where it belongs.
Electric winches also come standard with an automatic brake and a handheld remote control.
Electric winches can be easily installed to the back of a truck, boat, or solid surface.
Notice:
1) Do not use winch as a hoist, do not use for transportaion of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is overtheating, please stop for a while to cool down.
4) Limited warranty.
