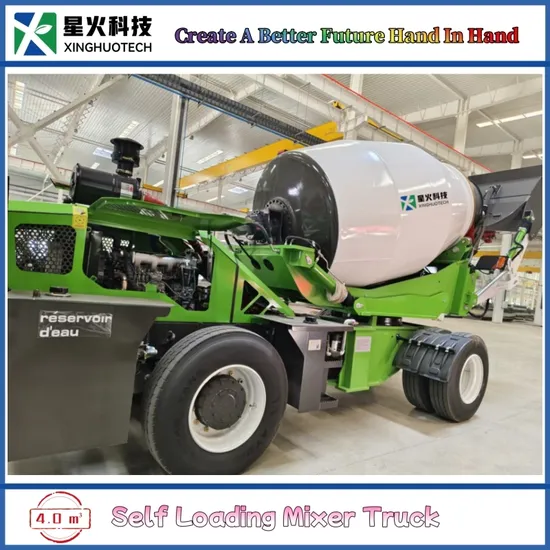

Compact 4.0 Cbm Self Loading Cement Mixer Truck with 4X4 Drive for Sale

Product Description

Product Description
Introducing the state-of-the-art automatic feeding mixer truck, an epitome of innovation, seamlessly integrating an advanced hydraulic and electronic control system. It has set a new benchmark in automation for concrete mixing operations, ensuring unmatched efficiency and precision.
The sophisticated working principle of this ingenious device is anchored by three fundamental core components:
Firstly, it boasts an automatic loading, a marvel of engineering that precisely orchestrates the hopper's actions through the robust hydraulic system, smoothly channeling raw materials into the mixing drum with unparalleled accuracy;
Next, it offers highly efficient mixing, utilizing a rotating and tilting drum to ensure a thorough blend of raw materials, thereby guaranteeing the superior quality of the resulting concrete;
Finally, the system ensures automatic unloading. At the meticulously calculated preset tilt angle, the system precisely deposits the concrete at the designated location with impeccable accuracy.
Application field
In practical applications, automatic feeding mixer trucks have showcased remarkable versatility, consistently performing at their best in various environments. construction sites, road engineering projects, water conservancy projects, tunnel construction, bridge construction, and rural development initiatives.
1. The standout advantage of automatic feeding and mixing is its exceptional level of automation, which significantly reduces the need for manual labor while boosting operational efficiency.
2. Its ability to achieve uniform mixing ensures consistent concrete quality; the on-site preparation flexibility provides independence from traditional mixing plants.
3. Concurrently, it offers substantial economic benefits for construction units through reduced labor and equipment costs.
4. In summary, as a cutting-edge and highly efficient concrete mixing solution, the automatic feeding mixer truck possesses expansive application prospects, warranting comprehensive attention and widespread promotion within the industry.
Product Parameters

Equipment Model	XS-1.2	XS-1.8	XS-2.0C	XS-2.6C	XS-3.5C	XS-4.0D	XS-5.5
Discharge Capacity	1.2 m³/batch	1.8 m³/batch	2 m³/batch	2.6 m³/batch	3.5 m³/batch	4 m³/batch	5.5 m³/batch
Output Capacity	5~10m³/h	8~12 m³/h	10 m³/h	11~17 m³/h	14~18 m³/h	16~20 m³/h	22~25 m³/h
Mixing Drum Capacity	1700 L	2680 L	3500 L	3580 L	4740 L	6000 L	7800 L
Drum Rotate	0º	270º	270º	270º	270º	270º	270º
Engine Model	Yunnei 490 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4105 Turbo-charged	Yuchai 4108 Turbo-charged	Yuchai 6105 Turbo-charged
Rated Power	55 KW	75 KW	75 KW	75 KW	85 KW	91 KW	92KW~132KW
Gearbox Model	ZL-265	ZL-265	ZL-265	ZL-280	ZL-280	ZL-315	ZL-428
Gearshift	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back
Fuel Tank	63 L	63 L	75 L	120 L	120 L	120 L	160 L
Water Tank	400 L	400 L	500 L	500 L	920 L	750 L	850 L
Water Supply	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay
Overall dimensions (L*W*H) mm	7300*1800*3450	7300*2650*3750	6950*2720*3850	7100*2750*4100	7600*2800*4180	8450*3000*4500	8450*3100*4580
Curb Weight (kg)	4920	6000	6300	7800	8300	9700	11200

Our Advantages
Multi-functional Excellence: Eliminate the need for additional concrete mixer trucks or loaders with our innovative self-loading mixer truck. This marvel of engineering effortlessly handles various tasks such as loading, mixing, moving, and unloading, streamlining your operations efficiently.
Single Operator Simplicity: Enjoy the incredible ease with our mixer truck, featuring a cab and mixing drum that can rotate a full 270 degrees synchronously. This design allows for seamless travel in both directions, providing an excellent field of view for the driver. With intuitive controls, a single operator can conduct all necessary operations without assistance from ground personnel.
User-Friendly Operation: Designed for simplicity, this mixer truck ensures straightforward operation, requiring only basic skills and minimal experience. Equipped with a balanced configuration of front four and rear two tires, the vehicle boasts flexible tire steering, ensuring smooth maneuverability and ease of handling.
High Flexibility to Navigate Anything: Thanks to its compact design, this mixer truck effortlessly maneuvers through narrow construction sites and challenging road conditions. It adapts seamlessly to various construction environments, making it an ideal choice for diverse projects.
Effortless Unloading: The innovative rotating tank design allows for precise unloading of concrete at the desired location, significantly enhancing unloading efficiency and productivity.
Broad Applicability: Perfectly suited for large-scale construction sites, rural development projects, and more, this versatile mixer truck meets the demands of extensive concrete construction efforts with unparalleled adaptability.
Unmatched Stability and Reliability: Equipped with imported main hydraulic components, our mixer truck ensures the highest standards of stability and reliable system operations, delivering exceptional performance you can trust.
Detailed Photos
1-Automatic Hydraulic Chute: Experience seamless operations with our state-of-the-art automatic hydraulic chute, engineered for precision and efficiency.
2-High Efficiency Bucket Vibrator: Our bucket vibrator is designed for high efficiency, ensuring optimal performance and productivity at all times.
3-Wear Resistant Bucket: Built to last, the wear-resistant bucket guarantees durability and long-lasting service even under the most demanding conditions.
4-Four Tugboats with Excellent Stability: Enjoy unparalleled stability with our stable four-tugboat system, providing robust support and balance.
5-Helical Mixing Blade: The helical mixing blade ensures thorough and consistent mixes, enhancing the quality of your output every time.
6-Turbocharged Engine: Power through with our turbocharged engine, delivering formidable strength and efficiency no matter the task.
7-Split Weighted Torque Converter: Benefit from our split weighted torque converter, designed to optimize torque distribution and improve performance.
8-Heavy Duty Double Brake Reduction Axle: Our heavy-duty axle with double brake reduction offers unmatched control and safety for all your heavy lifting needs.
9-High Quality Reducer: Ensure smooth operations with our high-quality reducer, engineered for reliability and durability.
10-Imported Hydraulic Motor: Leverage advanced technology with our imported hydraulic motor, ensuring superior performance and longevity.
11-Worm Gear Fully Sealed Rotary Table: The fully sealed rotary table with worm gear offers precision and protection, elevating your operational capabilities.
12-Luxury and Comfortable Cab: Step into luxury with our cab, designed for comfort and an elevated driving experience.
13-Comfortable Car Seats: Sit back and relax in our ergonomically designed car seats, crafted for unmatched comfort and support.
14-Dual Tire High Load-Bearing Design: Engineered for strength, our dual tire design supports high load-bearing capacities, ensuring reliability and stability.
15-Automatic Metering of Water Supply: Achieve precision with our automatic water supply metering system, enhancing efficiency and control.
Company Profile
1-Our state-of-the-art manufacturing facility is equipped with cutting-edge laser cutting technology, ensuring unparalleled precision and efficiency in sheet cutting.
2-Embracing automation at its finest, we utilize advanced robotic equipment for automatic welding, guaranteeing consistency and superior quality in every weld.
3-To fortify our frames against corrosion, we employ electrophoretic technology, a method known for its robust protection and long-lasting results.
4-Our products' aesthetic appeal is enhanced using electrostatic powder coating technology, ensuring a sleek, durable, and vibrant finish that stands the test of time.
5-Precision is the hallmark of our process, achieved through the use of high-precision CNC machine tools for boring machining, delivering exceptional accuracy and reliability.
6-Our assembly line is powered by cutting-edge AGV (Automated Guided Vehicle) technology, streamlining our production process and enhancing overall efficiency.
Packaging & Shipping
FAQ
Q: What value-added services can your company provide?
A:(1)After receiving your message, our project consultant will contact you within two hours to understand your project requirements.We have professional technical managers who can provide 2-3 sets ofsolutions for you according to your project with pictures, videos, parameters, configurations.Our engineers can provide different configurations according to your needs. (2)During normal technical and business communication, we can also provide free updates on equipment progress, free production supervision, and offer the most cost-effective packaging and shipping solution.
Q: How to ensure product quality?
A: Our company has obtained management system certifications such as ISO9001, ISO45001, ISO14001, etc. All machines are carefully inspected and quality controlled in strict accordance with Chinese national standards and international standards. Before shipment, we will test and inspect the equipment again to ensure that every machine we deliver to our customers has good performance.
Q: How to install, operate, and use the equipment?
A: Our company can provide free installation and operation videos. We have a professional after-sales service team, and our after-sales engineers provide installation and debugging training guidance to ensure that you have no worries when purchasing and using the machine.
Q: What after-sales services can you provide?
A: Our after-sales engineers can provide online technical guidance remotely at any time; (2) Due to non-human factors, the warranty period is 12 months after leaving the factory. If the spare parts are damaged due to product quality issues during the warranty period, we provide free spare parts and provide remote technical guidance; (3) Provide paid accessory supply beyond the warranty period.

---
