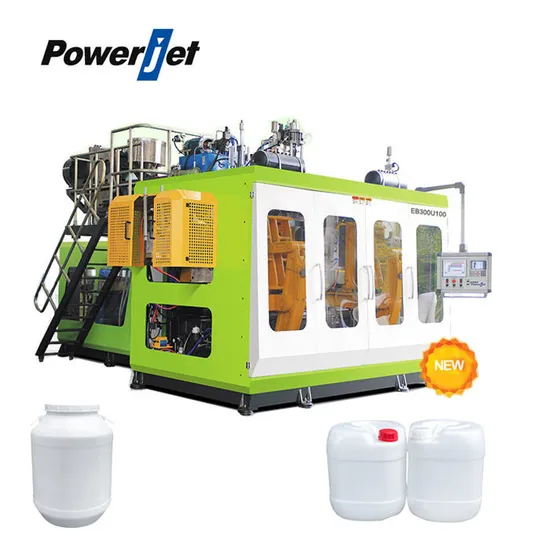

High-Performance Automatic Blow Molding Machine for Efficient Production

Product Description

Products Description
FEATURE:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.


Product Paramenters

MODEL	UNIT	EB120UW90	EB180U100 EB180UW100	EB300U100
Max.Product	L	12	20	30
Clamping Force	kN	190	260	300
Max. Mold Size(W x H)	mm	730x450	600x500	850x780
			800x460
Screw Diameter	mm	Φ90	Φ100	Φ100
Screw L/D Ratio	L/D	25	24	28
Screw Rotary Speed	RPM	60	60	60
Extrusion Weight(HDPE)	kg	150	180	210
Extrusion Motor Power	kW	37	55	75
Pump Motor Power	kW	22	22	22
Heating Capacity	kW	27	30	32
Operation Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8
Air Consumption	m³/min	4.0	4.0	5.0
Cooling Water Consumption(25ºC)	L/min	300	300	400
Machine Dimension (LxWxH)	mm	4800x4060x2900	5300x4600x3100	8300x5050x3600
Machine Weight	kg	9500	10000	16000

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.

In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
