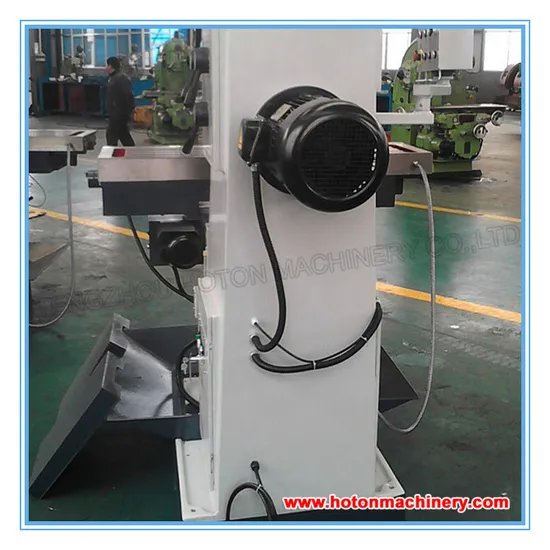

heavy duty knee type vertical milling machine X5040 X5032 X5045

US$5,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X5040 X5032 X5045
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
400X1700mm
Long Travel(mm)
900mm
Cross Travel(mm)
315mm
Vertical Travel(mm)
385mm
Motor
11kw
Transport Package
Plywood Case
Specification
4350kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
10 PCS/Month

Product Description


THE MAIN PERFORMANCE CHARACTERISTICS:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
PRODUCT PARAMETERS:
SPECIFICATIONS UNITS X5032 X5040 X5045
Table size mm 1320x320 1700x400 2000x450
T-type slot numbers / width /space mm 3-18-70 3-18-90 18
Max. load of table kg 500 800 800
Longitudinal travel (manual/auto) mm 700/680 900/880 1800
Transverse travel(manual/auto) mm 255/240 315/300 400
Vertical travel (manual/auto) mm 370/350 385/365 460
Cutting feed speed mm/min X.:23.5-1180.Y:15-786.Z:8-394 X.Y:23.5-1180. Z:8-394 X.Y:10-1000 Z:10-450
Rapid feed speed mm/min X:2300.Y:1533.Z:770 X.Y:2300..Z:770 1800
Spindle travel mm 70 85 85
Distance between spindle nose and table surface mm 60-430 130-515 30-600
Max. swivel angle of table ±45° ±45° ±45°
Spindle speed step (steps) 18 18 18
Spindle speed range rpm 30-1500 30-1500 30-1500
Spindle motor power KW 7.5 11 11
Overall dimensions mm 2294x1770x1960 2560x2130x2298 2560x2160x2400
Machine weight Kg 2800 4250 5100
