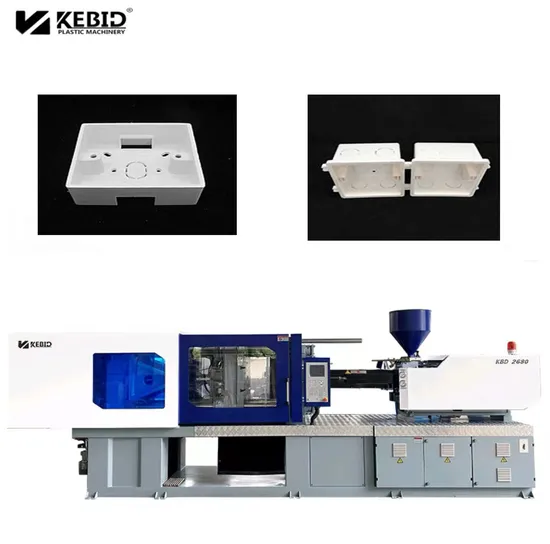

Electrical Molding Rubber Injection Moulding Machine

Product Description

Product Description






Detailed Photos

SPECIFICATION ITEM		KBD3480
Injection unit	Unit	A	B	C
SCREW DIA	mm	60	65	70
SHOT VOLUME (THEORETICAL)	cm3	989	1160	1340
INJECTION WEIGHT(PS)	g	900	1000	1225
INJECTION PRESSURE	Mpa	225	195	165
SCREW SPEED	rpm	0-160
CLAMPING UNIT
CLAMPING FORCE	KN	3480
TOGGLE STROKE	mm	660
SPACE BETWEEN TIE BARS	mm	660*660
MAX.MOLD HEIGHT	mm	680
Min.MOLD HEIGHT	mm	250
EJECTOR STROKE	mm	160
EJECTOR TONNAGE	KN	70
OTHERS
PUMP MOTER POWER	Kw	37
HEATING POWER	Kw	22.8
MACHINE DIMENSION(L*W*H)	m	6.9*2.0*2.35
MACHINE WEIGHT	T	12

Packaging & Shipping




KEBID BRAND Plastic child Toy car shovel candy box injection molding machine Standard export packing

Company Profile


Ningbo HYSTAN(KEBIDA) Plastic Machinery Manufacturing Co. Itd., located in Chinese eastern seaside city of Ningbo, is a professional high-new technology injection machine manufacturing enterprise.
The company, through continuous reform, innovation, carrying on scientific optimization management, sticking to purpose quality first, sincerity first, client first, now has a skilled professional technical team. The Independently developed HYT Series and KBD Series always pass strict test in processing of design, material purchasing, fittings assemblies and output of the machine. And the machine passes the test of International Testing Center. The main parameters, safety characteristics, hydraulic system and electronic system achieve top level in the industry. HYT Series and KBD Series injection machine have characteristics: beautiful figure and appearance, strong clamping force, high precision, low noise, energy saving and low power consumption.
The company has dozens of sales network and service department in China. The machine also has been sold to Russia, Southeast Asia, Middle East, South America, Europe, and other Countries and areas, earning good reputation from clients in domestic and foreign market.
The company sticks to manage concept People Oriented, Client Supreme, pursues first-class high quality output, and is willing to accompany New and Old Client, Colleague to create splendid future!

FAQ

1. who are we? We are based in Zhejiang, China, start from 2002,sell to Domestic Market(40.00%),South America(20.00%),Southeast Asia(20.00%),Africa(10.00%),Mid East(10.00%). There are total about 11-50 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Injection molding machine 4. why should you buy from us not from other suppliers? professioanl manufacturer of plastic injection molding machine with more than 14-year experience, stable good quality, best price and service.injection molding machine,Plastic molding complete solution,high quality machine,high speed machine,Better choice. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,Portuguese,Arabic,French,Korean

---
