Semi-Automatic 4-Cavity Plastic Bottle Making Machine

US$10,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LK-SA4
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Model
Lk-SA4
Control System
Computerized
Bottler Material
Pet
Bottle Volume
100ml to 2500ml
Machine Capacity
2000 Bottles Per Hour
Machine Installation Power
30kw
Suitable for
Water Bottle, Beverage Bottle, Oil Bottle...Ect
Voltage
Be Designed by Customer Requests
Certificate
SGS, ISO, Ce, ..
Weight
1300kgs
Transport Package
Wooden Export Package
Specification
ISO, SGS, CE
Trademark
LINKS
Origin
Zhangjiagang City, China
HS Code
84774010
Production Capacity
20/Month

Product Description

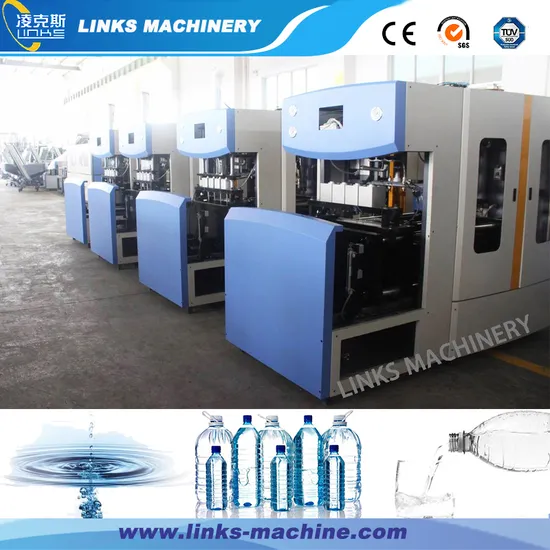

Semi-Automatic 4-Cavity Plastic Bottle Making Machine
The machine equip two 1.2M3/Min/30kg high air compressor, one 3 hp chiller and cooling dryer.
This model machine is advanced semi-auto blowing machine, 4-cavity one, capacity can reach 2000bph, and the machine only requests 1 worker operation.
Technical Parameter
General information MG-SA4
Clamping force 300KN
Clamping stroke 350mm
Max. stretching stroke 380mm
Number of cavities 4-cavity
Theoretical output 1800-2000bph
Max. mold thickness 190mm
Electrical system
Voltage standard 380v/3PH/50Hz or special order
Total power (full loaded) 18KW
Container
Max. container volume 2.5L
Neck diameter range 15-45mm
Max. container diameter 110mm
Max. container height 370mm
Auxiliary system
High air compressor >1.2m3/3.0Mpax2 (0.5L)
Dimension & weight (LxWxH)
Blow molding machine 1.9x0.88x1.8m
Pre-heater 1.9x0.66x1.6m
Net weight 1.3T

Components List
Item Name Brand name
1 Cylinder for stretching unit FESTO
2 Pneumatic par for clamping unit FESTO
3 Sealing cylinder FESTO
4 Blowing Solenoid Valves FESTO
5 Sealing solenoid valve FESTO
6 Clamping Solenoid valve AIRTAC
7 Stretching Solenoid valve FESTO
8 PLC controller TIANJING
9 Breaker DELIXI
10 AC contactor DELIXI
11 inverter DELTA


FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work
