Vmc850 CNC Vertical Machining Center CNC Milling Machine Vmc

Product Description

Product Description

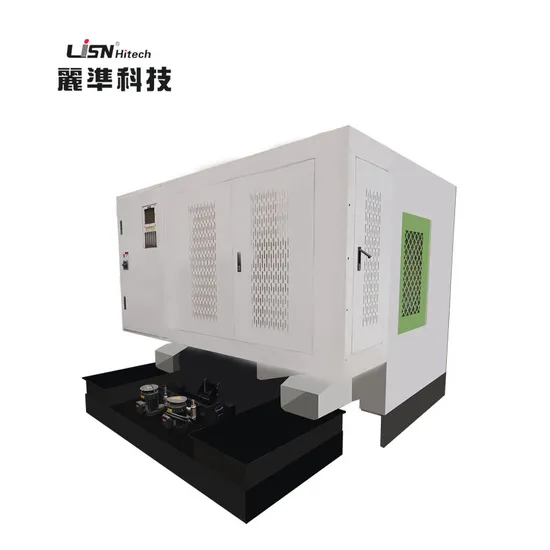

The VMC- 1160 IS a high performance vertical machining center, it has the characteristics of high speed, high performance, high rigidity and high stability. All castings of this machine are secondary tempered to provide excellent rigidity and stability to the machine, which can make this machine maintain high speed and high stability in the process of processing. The three-axis adopts high-precision ball screw, combined with precision nut pre-compression and tail end pre-tension device, to ensure that the machine backlash and thermal deformation are kept at a low value for a long time.

This machine can be used in automotive, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, molds and plate/disk type workpieces. It is especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.

Main Features
The overall stability of the machine is good, and the accuracy is stable and reliable Constant and high speed motorized spindle, high precision, good reliability Direct coupling connection, transmission rigid, high precision and stability Adopt timing and quantitative automatic centralized oil supply lubrication system to ensure that any lubricating part can be fully lubricated Mitsubishi M80 control system, humanized man-machine operation interface, safety specifications, convenient operation Worktable size: 600mm*1200mm Maximum load capability: 1000kg Tools magazine capability:24pcs Detailed Photos

Product Parameters

ITEM	MODELS	VMC1160
WORKTABLE (WIDTH*LENGTH)	mm	1200x600
DISTANCE BETWEEN T SLOTS	mm	5-18x120
MAX LOAD BEARING OF WORKTABLE	kg	1000
X/Y/Z AXIS TRAVEL	mm	1100/600/600
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	1100/600/600
SPINDLE HOLE TAPER	-
SPINDLE SPEED RANGE	r/min	10000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	BELT/DIRECT
SPINDLE MOTOR POWER	kW	11
X/Y/Z RAPID FEED SPEED	m/min	36/36/36
MAX CUTTING FEED SPEED	mm/min	12000
TOOLS MAGAZINE CAPACITY	pcs	24
X/Y/Z POSITION ACCURACY	mm	0.005
X/Y/Z RE-POSITION ACCURACY	mm	0.003
MACHINE DIMENSION	mm	3250x3030x2800
MACHINE WEIGHT	kg	6000

Standard Configuration for VMC Series Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / 10000 RPM spindle / Worktable cleaning water gun
Optional Configuration for VMC Series 24 disc manipulator tool magazine / Crawler chips remover / NC rotary table (4 Axis) / CTS / Tool detection system / AJO / 12000 & 15000 RPM Direct connection spindle / Oil mist purifier
Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
