Product Details
Product Description
Product Description
1. Product Features:
Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board. Cold press machine belongs to the pressing machine. Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press. It is important to improve the quality of plywood, and it is an significant part. Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.
Advantages of our pre-press equipment:
1.Easy to operate, reasonable design, stable performance
2.fast and efficient pressing.
3.Emergency safety braking.
2. Technical Specification:
| Model | BY814X8/50 |
| Nominal Gross pressure | 500KN |
| Direction of feeding | Horizontal |
| Opening | 1000mm |
| Main Cylinders | 2xφ110mm |
| Size of workingbench | 2500x1250mm |
| Cylinder Stroke | 1000mm |
| Power | 3kw |
| Control method | Automatic pumping station |
| Machine weight | 2800kgs |
| Chain roller conveyor | Yes,optional |

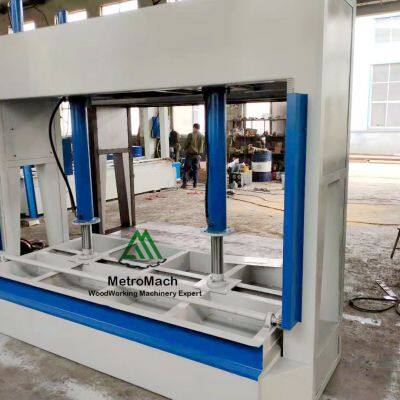

3. More Pictures:
Welcome to contact:
Whatsapp: +8615054649650
Wechat: +8615254920677
Email: maylv@metromach.com
>>
