D 510 mm large oil drum Servo drive screen printing machine

Product Details

Product Description

Product Description

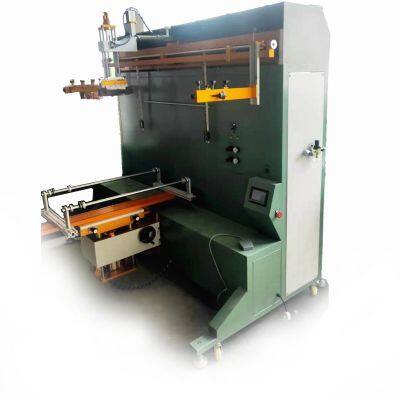

large oil drum Servo drive screen printing machine

Item	Description
TM-1800G oil barrel screen printer 8443192900	Left and right stroke:1800mm Servo motor drive Printing area:1600300mm Printing speed:400pcs/hr Power:230v/50hz single phase 400w Dimension : 230016001950mm, Plywood 185299*220cm=12.17CBM Weighs 400KG
TM-1800G oil barrel screen printer 8443192900	tool
AL Printing plate 7616999000

Starting Mode	Panel /foot switches
Up and down drive	Pneumatic
Left and right drive	Electric servo motor
Workpiece up and down stroke	100MM （Pneumatic）
Left and right stroke	1600mm
Max printing area	1600*300mm
Printing plate size	2100*500mm
Max printing diameter	Φ510mm
Max printing length	1600mm or Customized
Printing speed	200PCS/Hr
Power	220V 50HZ 400W
Atmospheric pressure	5-7BAR (110litre/min)
Weight	550kg
Dimension	230016001950mm

Product Description:
Non-standard large drum screen printer is a customized large screen printing machine based on customer’s specific demand and specifications. This machine is suitable for printing logos on mainframe drums, mineral water barrels, chemical barrels, paint barrels etc. Machines use inverter motor control with rail slide printing, in that way the machine is more stable, higher precision, and lower noise.
Characteristics:
1 microcomputer control high degree of automation, simple operation;
2, using the brand pneumatic components, stable and reliable performance;
3, back to the oil scraper dual mode selection; accommodate various printing requirements;
4, the printing stroke and speed are adjustable to meet the 360-degree and multi-color overprint different printing requirements;
5, self-balancing blade, to ensure equalized printing pressure;
6, using imported axis, so that the screen scraper smooth glide sleeve printing;
7, slide speed can be adjusted independently, easier to use, fast;
8, about the use of high-precision linear slide rail slide, with Taiwan Wanxin brand motor,
9, using the stepless speed and with Danfoss frequency converter drive, running precise, stable 10 long life
11, lift up and down using the cylinder type,
12, widening thick heavy base,
13, so set manually fine-tuning, convenient and accurate alignment.
FAQ:
Q1:
Why do you have to tell me whether you are a trade wholesaler or a direct end customer?
A1:
There will be different TAMPRINTER'S salesmen to receive you
Q2:
Why are you asked if you are familiar with printing technology?
A2:
Because our quotation must consider whether you need after-sales service
Q3:
Why do we need to ask about your product size drawings and photos, as well as the accuracy requirements of the pattern and the pre- and post-processing processes?
A3:
It’s all about buying the right machine for you
By the way , would you also Need any Thousand layer cart , Squeegee ,Aluminum Screen Frame or exposure machine?
