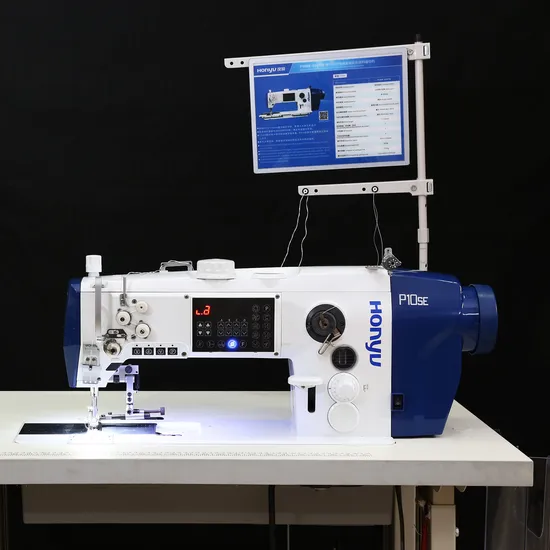

P10SE-130742 Single needle direct drive car interior and sofa leather triple feed heavy duty sewing-machine

Product Description

Walking foot leather industrial sewing machine, flat bed sewing machine
P10SE-130742 Direct drive, single needle binding compound feed sewing machine

Model No.	P10SE-130742
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	3000 s.p.m
Shuttle diameter	Ф32mm
Applied needle	DP×17 #18-#23
Needle quantity	1
Thread size	Maximum thread 12 strands nylon
Max stitch length	9mm
Max alternating presser foot	9mm
Max presser foot lifting height	20mm
Auto trimming	√
Auto back tacking	√
Presser foot lifting height by air	√
Auto oil system	√
HP function	√
Halving positioning device	-
Operation space	351×125mm
Multi-grade adjustable LED light	√
Electronic handwheel	√
LED touchscreen	5.1 inch
Halving positioning device	-
Function related can be set	√
Double stitch length switch quickly	√
Pneumatic compensation thread clamp	√

Product Description
1.Single needle platform compound feeding sewing machine.
2.Equipped with XXL hook(Ф32mm),standard automatic thread trimming device,the remaining thread tail length after thread trimming is about 15mm,with functions such as automatic back tacking and automatic foot lifting.
3.Typical application areas:Abutted seam and decorative topstitch in the automotive industry.
Needle gauge can be set
P10SE double needle series adopts metric needle gauge group,6mm, 8mm, 10mm and 12mm various specifications are available.
Larger operation space
351*125mm, the larger operation space facilitated the handling of large-area workpiece.
Pneumatic presser foot lifting
The lifting height of the presser foot can be up to 20mm,which is convenient and quick to place the sewing material.
XXL large hook
P10SE series is equipped with XXL large hook as standard.The diameter of bobbin is 32mm.Compared with the first generation of HONYU,the capacity of thread is increased by 47%,the frequency of bobbin changing is effectively reduced.
HP function
1.Transform the maximum presser foot alternating amount 9mm by one-click.
2.When the sewing reaches the position between up and down step,pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount,it will form a perfect stitch.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofa.
