Semi-Automatic 7L Facial Tissue Folding Machine Facial Tissue Production Malchine

Product Description

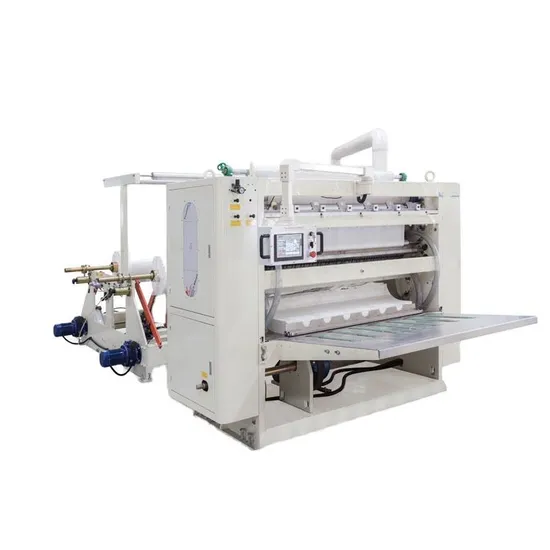

7L High Speed Folding Facial Tissue Machine

Product Description


The principle of a paper folding machine is mainly to feed the paper into the machine through a conveyor belt. The folding device folds the paper based on the length and width data detected by the sensor. The positioning device determines the folding position, and the cutting device cuts off the excess part to obtain a neat folded paper.
Embossing Unit:
1. Embossing part: 2 pairs steel to steel or steel to rubber
2. Edge-embossing part: 14 groups pneumatic steel against steel (bearing steel) at the front and back, independent adjustment.
Unwind Unit:

Width of parent paper	1450mm
Max diameter of parent paper	1200mm
Core inside diameter	76.2mm(3")
2 parent paper roll	pneumatic loading unit
Web tension controlled	manually
Parent roll axes regulation	manually

Transmission:
1.By gear and simultaneous belt
Control Unit:
1.Speed adjusted:by inverter(5.5kw)
2.Counting system:counter adjusted
3.Jogging button and emergency button installed on machine
Vacuum System:
1.1 set roots vacuum pump of 18.5KW(made in Taiwan)
Compressed Air:
1.Air pressure:> 4kg/cm2 (provided by buyer)
