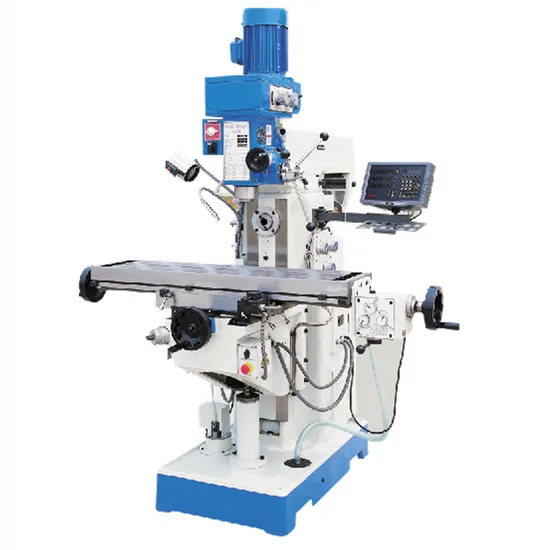

Mechanical Gear Driven Universal Drilling and Milling Machine Zx6350c

Product Description

mechanical gear driven universal drilling and milling machine ZX6350C FEATURE
drilling and milling machine feature:

Complete with automatic table feed in x- and y-axis including rapid feed Surface treated, large table includes T-slots Heavy cast-iron machine stand eliminates vibrations Dovetail guiding in all three axes - adjustable by gibs Positioning motor for z-axis comes standard Wide speed and feed range Ideal for single and small-series production Tapered roller bearings ensure high concentricity Left and rigth rotation allows thread cutting SPECIFICATIONS
drilling and milling machine specification:

Model		ZX6350Z	ZX6350C
Max.drilling dia. (mm)		50;30	50;30
Spindle taper		M.T.4;R8;ISO30;ISO40	M.T.4;R8;ISO30;ISO40
Max.vertical milling dia. (mm)		25	25
Max.boring dia. (mm)		120	120
Max.tapping dia. (mm)		M16	M16
Distance spindle to table surface (mm)		140-490(8)	100-480
Spindle speeds range (r.p.m.)(steps)	Vertical	60-1500(8)	115-1750(8)
	Horizontal	10-1300(12)	40-1300(12)
Spindle travel (mm)		120	120
Automatic spindle feeds (mm)		0.08;0.15;0.25	/
Table size (mm)		1120×280;1000×280	1120×280 or 1000×280
Table travel (mm)		600×260	600×260
Overall dimensions (mm)		1400×1630×2650	1400×1630×2650
Motor	Vertical	1.5	0.85
	Horizontal	2.2	1.5/2.2
N.W/G.W		1200/1350	1200/1350

ACCESSORIES
drilling and milling machine accessories:
Standard Accessories:
1.Drill chuck
2.Mill chuck
3.Reduction sleeve
4.Maching vice
5. Wrench
6. Inner-hexagonal spanne
7. Camlock
8.Wedge shifter
9. Spindle arbor
10. Horizontal milling bilt
11. Operation manual
12.Quality certificate
13. Packing list.
Optional Accessories:
1.Digital read out
2.Milling chuck collets
3.Machine vice
4.Clamping kits
5.Universal dividing head
6.Rotary work table
7.Slotting head
Detailed Photos
drilling and milling machine more photos:
If you are interested in drilling and milling machine , pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person : kitty xu

---
