Product description:
The PLS series is an ultrasonic line generator developed by Pulisen Ultrasonic Company after more than ten years of technology and experience accumulation and applied to the field of industrial, medical and household cleaning. The line generator is developed with our unique technology and is At the same time, it has the ultrasonic technology characteristics of full bridge phase shift, constant power output, and automatic frequency tracking, and it has high adaptability and stability for different cleaning conditions.

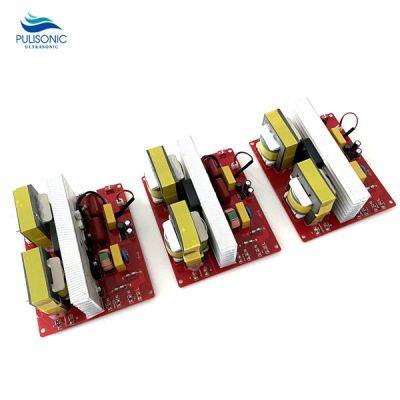

This circuit board supports frequency: 25K/28K/33K/40K, power can reach: 600W, can be connected to a small cleaning tank alone or matched with a customized cleaning tank, working frequency is automatically tracked, and the output is matched to different domestic and foreign ultrasonic waves. Energy device, the power is more powerful, and the efficiency is higher.
Performance characteristics:
.Using IGBT full bridge phase shift technology, constant power output;
.Automatically find suitable frequency points, and the speed response is very fast.
.Higher power output and ultrasonic effect.
.25khz-40khz frequency adjustable.
Main application:
Purpose of use: cleaning, degassing, disinfection, emulsification, mixing, replacement, extraction, etc. of objects.
Applicable departments: electronic workshops, industrial and mining enterprises, laboratories, hospitals and medical care, watch shops, optical shops, jewelry shops, mobile phone repair shops, home use, school research and development, etc.
Key business coverage: LED chip holders, LCD liquid crystal modules, PCB circuit boards, clocks, glasses, glassware products, chemical fibers, medical equipment, liquid crystals, optical communications, jewelry, coins, bearing motors, biochemicals, optical electronics, refrigeration, Electroplating, ion plating, mechanical hardware, aerospace, defense weapons, automobile and parts manufacturing, semiconductor development, integrated circuit development, computer motherboards and accessories, vacuum electronics industry, micro products, hospital science, medical equipment, dentures and dental equipment, Disinfection and sterilization, research and development, archaeology, textile processing, plastic and rubber industry, life science laboratory, TEM, SEM sample and bracket cleaning and other industrial fields, as well as in commercial offices such as printer nozzles, badges, and household cleaning bottles and fruits , Tableware, razor heads, etc. won the trust of users.
| Model | Power | Frequency | Voltage |
| PLS-WDLB200W | 200W | 17khz,20khz,25khz,28khz,33khz,40khz,50khz,54khz
,68khz,80khz,100khz,120khz,135khz,165khz,200khz
| 110V/120V/220V/240V |
| PLS-WDLB300W | 300W | 17khz,20khz,25khz,28khz,33khz,40khz,50khz,54khz
,68khz,80khz,100khz,120khz,135khz
| 110V/120V/220V/240V |
| PLS-WDLB400W | 400W | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
| PLS-WDLB500W | 500W | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
| PLS-WDLB600W | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
>>
