Br150ldy CNC Slant Bed Lathe for Metalworking Turning and Milling Center

Product Description

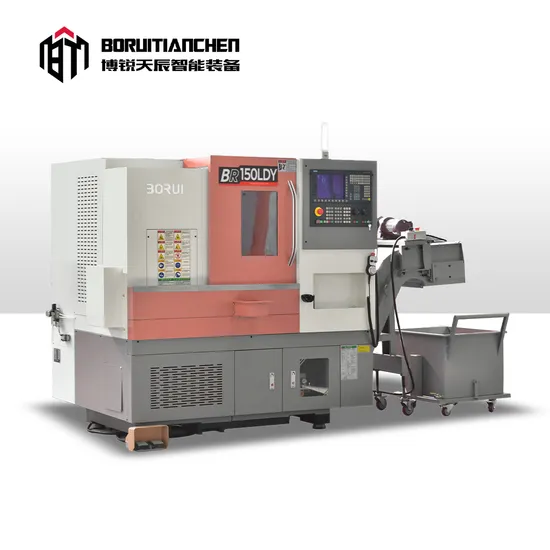

BR150LDY CNC Slant Bed Lathe with Power Turret and Y Axis for Metalworking Mach
Product Description
Product Main Technical Specifications:

Item	Unit	BR150LDY
Max. Swing Diameter over bed	mm	Φ510
Max. Swing Diameter over cross slide	mm	Φ150
Max. Processing Diameter	mm	Φ250
Max. Processing Length	mm	235
Spindle nose type		A2-5 (6″ )
Spindle through hole Diameter	mm	Φ56
Through Bar Diameter	mm	Φ45
Spindle speed range	rpm	4500
Main motor power	KW	5.5-7.5
X/Y/Z axis lead screw specification		3208/2508/3210
X/Y/Z axis linear guide specification		35/25/35
X/Y/Z motor torque	N.M	11/7/11
X /Z axis Limit Stroke	mm	135/370
Y axis limit stroke	mm	60 (±30)
X/Y/Z axis Connection		Direct connection
Turret		12 station Power turret
Power head specification		BMT40
Power head speed	rpm	4000
Power head motor	kW	2.5
Transmission ratio of power head to motor		1:1
Bed type and Inclination		30° Integrated
Overall dimensions of machine tool	mm	1430*1025*1470

Details Display

Our Service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1.(Only some low cost machines will be more than 1)
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
