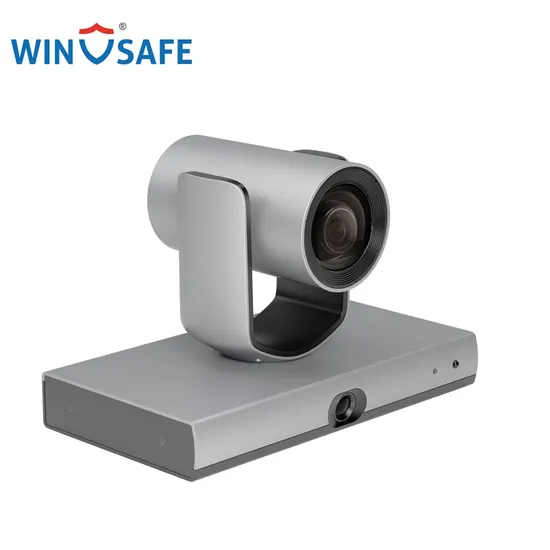

Zone Tracking and Lock-N-Track 4K Video Camera Support Broadcast Resolution 59.94 and 29.97

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
PVC-G512P
Shape
Tracking Cameraa
Material
Plastic
Resolution Ratio
4K
Feature
USB, HD, 3G-SDI
Language Support
English
Usage
Video
Image Sensor
1/2.8" 4K CMOS, 8.46MP
Focal
F = 3.4mm - 40.3mm
Iris
F1.8 - F3.6(Tele)
Zoom
Optical: 12X
Field of View
81° - 7.6°
White Balance
Auto, Indoor, Outdoor, One Push,Manual, Auto Track
Full-View
94
Preset Number
256
Interface
HDMI 3G-SDI IP USB
Transport Package
Neutral
Specification
CE, FCC, Rohs etc.
Trademark
WINSAFE/OEM
Origin
Shenzhen, Guangdong
HS Code
8525801390
Production Capacity
10000PCS/Month

Product Description


- Dual-cam design, simultaneous 4K UHD outputs of tracking cam and full-view cam
- Tracking cam: 12x optical zoom, HFOV up to 81°, max resolution 4KP60
- Full-view cam: 4K lens, HFOV 94°, no distortion
- Built-in advanced AI algorithm based on deep learning, to ensure stable tracking and precise posture recognition
- Board writing recognition based on pose estimation, giving clear view of writing content
- Rich tracking modes such as auto framing, zone tracking, lock-n-track, group tracking etc.
- Simultaneous outputs over HDMI, USB2.0, Ethernet, 3G-SDI, support POE
- Built-in Web UI for easy setting and control
- Support 59.94/29.97 frame rate
Image Sensor 1/2.8" 4K CMOS, 8.46MP
Focal f = 3.4mm - 40.3mm
Iris F1.8 - F3.6(Tele)
Zoom 12x optical zoom
HFOV 81° - 7.6°
Focus Auto, Manual, PTZ Trigger, One Push Trigger
AGC Auto/Manual
White Balance Auto/Indoor/Outdoor/One Push/Manual/Static
AE Control Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Shutter Speed 1/50 - 1/10,000s
Full View Camera
Image Sensor 1/2.8" 4K CMOS, 8.46MP
White Balance Auto
Exposure Auto
Lens f=2.8mm
HFOV 94°
PTZ
Pan -130° - +130°, 0.2° - 80°/s
Tilt -30° - +90°, 0.2° - 60°/s
Preset Number 256
Interface
HDMI 1 x HDMI with audio
Output switchable between full-view cam and tracking cam: Max. 4KP30
Output only from tracking cam: Max. 4KP60
Support broadcast resolution: Max. 4KP59.94/P29.97
3G-SDI 1 x 3G-SDI with audio
Output swichable between full-view cam and tracking cam: Max. 1080P60
Output only from tracking cam: Max. 1080P60
Support broadcast resolution: Max. 1080P59.94/P29.97
Network 10/100M RJ45 self-adaptive with POE
H.264/H.265, support main and sub steam
Output switchable between full-view cam and tracking cam: Max.4KP60
Support NDI HX3/Dante/AV-H/ONVIF/RTSP/RTMP/SRT/TCP/UDP/RTMPS/VISCA OVER IP
Audio compression: AAC, G.711
Built-in Web UI
HDBaseT(Optional) 1 x HDBaseT(Optional)
Output swichable between full-view cam and tracking cam: Max.4KP30
Output only from tracking cam: Max. 4KP60
USB USB2.0 Type-B with UAC, UVC1.1
Output switchable between full-view cam and tracking cam: Max. 4KP30
UVC supports H.264/MJPEG
Audio Interface 1 x Line IN, 3.5mm
Control Interface 1 x RS-232 IN, 1 x RS-232 OUT
DIP Switch Rotary DIP switch to define video format
