Shanghai Lincheng Semi-Automatic Stitching Machine Lum-B 2000/2500/3000

Product Description

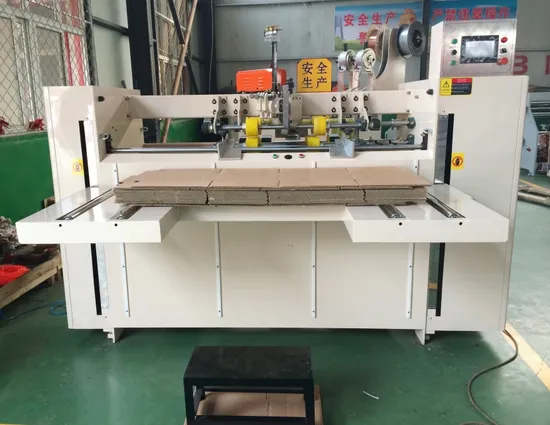

Product Description LUM-B Semi-automatic stitching machine
Product Parameters
Technical parameter:

Model and Configuration	LUM-B 2000	LUM-B 2500	LUM-B 3000
(A+B)*2 (mm) Maximum size (A+B) x2	3740 (1100+770)mm	4740mm	5740mm
(A+B)*2 mm) Minimum size (A+B) x2	700mm	700mm	700mm
(C+D+C) Maximum size( C+D+C)	2500mm	2500mm	2500mm
(C+D+C) Minimum size( C+D+C)	400mm	400mm	400mm
C Minimum cover C	20mm	20mm	20mm
Maximum cover C	310()mm 500()mm	500 mm	500 mm
B Maximum width B	770 mm	920 mm	1070 mm
B (mm) Minimum width B	150 mm	150 mm	150 mm
A Maximum length A	1100mm	1450mm	1800mm
A Minimum length A	200mm	200mm	200mm

D (mm) Maximum height D	2000 mm	2000 mm	2000 mm
D (mm) Minimum height D	150 mm	150 mm	150 mm
E Max nailing width E	40 mm	40 mm	40 mm
Max board feeding height	900mm	900mm	900mm
Dimension	2850x1700x1800mm	3350x1700x1800mm	3850x1700x1800mm
(kg) Weight	2000kg	2300kg	2700kg
(nail / min) Mechanical speed	600nail/min	600nail/min	600nail/min
Nailing number	2-99	2-99	2-99

Stitching board sample:
Company Profile
Features Features:
1.It features appearance of new, high speed, smooth operation,,stitching firmly,bottom die carbide, long life and other characteristics;
2.Adapt to a variety of corrugated boxes stitching,high efficiency, high speed, single,double nails with adjustable.

---
