High Performance Full Range Neodymium PA Speaker Unit Sound System 10inch Speaker Driver

Product Description

Welcome to ACLON audio factory. We are your one stop source for all of your Sound, Staging and Production needs. Whether you are looking to wholesale purchase or are looking for full concert production services, ACLON is here for you!
high reliability sound system make your show perfectly & smoothly!
*** Line array system
***Power Amplifier
*** PA speaker unit

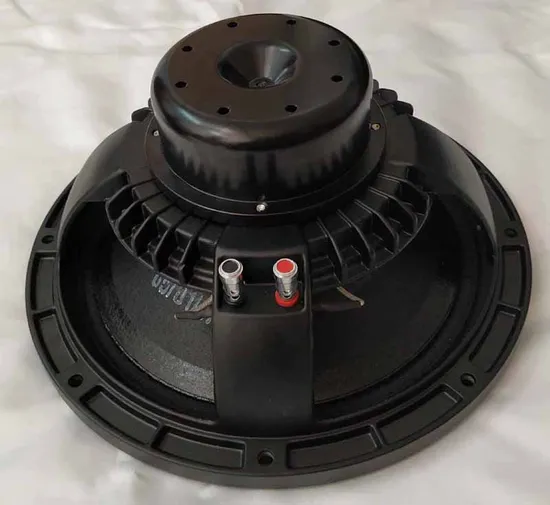

Model: 10UN66 neodymium woofer unit specification:

Model	10UN66
Inch	10" neo
Rated power (AES)	300W
Program power (AES)	600W
Voice coil diameter	64mm (2.5 inch)
Basket material	Aluminum frame
Magnet type	Neo magnet
Sensitivity/Nominal	97dB (±3dB)
Frequency range	50-3000Hz
Fs	59Hz
Re	5.7 ohm
Qes	0.29
Qms	3.4
Total factor (Qts)	0.26
Vas	31 dm3
Xmas	±6mm
Mms	37g
Le	0.9mH
EBP	193Hz
Standard impedance	8 ohm
Overall diameter	261mm
bolt circle diameter	245mm
baffle cutout diameter	230mm
Depth	113mm
Flange and Gasket Thickness	13mm
Net weight	2.9kg
Gross weight	3.5kg
Carton box (mm)	321*295*195

1. Selling to over 60 countries and regions
2. High performance with competitive price
3. Amplifier, active line array speaker, customized speaker is our strong points.
Are you looking for perfect sound system for your events venue?
Do you want to cut purchase cost?
Are you looking for reliable partner?
Contact ACLON now! Call me!
ACLON with you hand in hand, together, we will be stronger

Our advantages
1. Imported USA component, USA technology.
2. Fast production lead time;
3. High quality and competitive price;
4. Professional factory. Workers are working with rich experience and good workmanship.
5. Product sound and performance it can compare with international famous brand.
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory, specialized in professional audio equipment.
2. Q: Where is your factory located? How can I visit there?
A:Factory located in Haizhu Town , Guangzhou City, Guangdong Province in China. Takes about 1 hour from airport to our factory.
3. Q: How does your factory do regarding quality control?
A:Quality is priority. Each production process must be checked by QC team and QA before departure.
4. Q: Can you accept customized orders? OEM or ODM orders?
A: Yes, we can. Customized orders are always welcomed, as well as OEM and ODM.
5. Q:Can you make customers' logo on products and customer design?
A:Yes, we can, and customer's design are welcome .
6. Q:.Which country is your main export market?
A: Our main export regions are USA, Canada, Guatemala, Mexico, Germany, UK, Sweden, Hungary, Vietnam, Indonesia, Malaysia, Kenya, Ghana etc.
7. Q:.What if I can't find the infos I'm looking for, or what if I want to speak to someone directly?
A: Send message now, feedback will be got promptly or latest within 12 hours.
B: call me or email me now.

---
