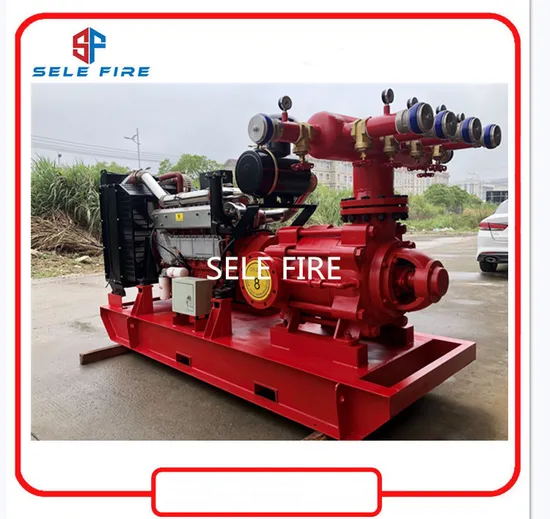

UL/FM Listed Diesel Engine Fire Pump, Multistage Centrifugal Fire Fighting Pump, Diesel Water Pump, Fire Hydrant Sprinkler Pump, Centrifugal Fire Water Pump

Product Description

1.Product Description
The D series horizontal multistage centrifugal pump is composed of certain single stage pumps connected in series. With large output water pressure, the centrifugal force is obtained through impeller rotation. When the air is pumped out and concentration meets the operation requirement, high vacuum is obtained.
The air suction, compression and exhaust of the mechanical vacuum pump are conducted based on the volume change of the pump cavity. The distinct feature of the horizontal single suction centrifugal pump is that the stage quantity can be adjusted according to practical working pressure.
The pump is efficient, reliable, and durable with low noise performance and easy maintenance and wide scope of usages.
Our pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance. While oily and corrosive or solid-contained fluid can be pumped by means of material modification, sealing methods, and cooling system adding.
2.Pump Technical Parameters
1.Max Flow:1100m3/h;
2.Max Head:1800m;
3.Power:7.5-355kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-120°C.
3.Partial Models Specifications (More Specifcations Pls Feel Free To Contact Us)

D(DF,DY,MD)6-25×(2-12)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	Power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	KW	m	mm	kg
2	3.75	1.04	51	2950	35	1.49	3	2.0	φ139.5	77.2
	6.3	1.75	50		46.5	1.84		2.0
	7.5	2.08	49		48	2.08		2.5
3	3.75	1.04	76.5	2950	35	2.23	5.5	2.0	φ139.5	85.5
	6.3	1.75	75		46.5	2.77		2.0
	7.5	2.08	73.5		48	3.12		2.5
4	3.75	1.04	102	2950	35	2.98	7.5	2.0	φ139.5	94.4
	6.3	1.75	100		46.5	3.69		2.0
	7.5	2.08	98		48	4.16		2.5
5	3.75	1.04	127.5	2950	35	3.73	7.5	2.0	φ139.5	102.9
	6.3	1.75	125		46.5	4.61		2.0
	7.5	2.08	122.5		48	5.20		2.5
6	3.75	1.04	153	2950	35	4.47	11	2.0	φ139.5	111.5
	6.3	1.75	150		46.5	5.53		2.0
	7.5	2.08	147		48	6.24		2.5
7	3.75	1.04	178.5	2950	35	5.22	11	2.0	φ139.5	120.0
	6.3	1.75	175		46.5	6.45		2.0
	7.5	2.08	171.5		48	7.28		2.5
8	3.75	1.04	204	2950	35	5.96	15	2.0	φ139.5	128.6
	6.3	1.75	200		46.5	7.37		2.0
	7.5	2.08	196		48	8.32		2.5
9	3.75	1.04	229.5	2950	35	6.71	15	2.0	φ139.5	137.1
	6.3	1.75	225		46.5	8.29		2.0
	7.5	2.08	220.5		48	9.36		2.5
10	3.75	1.04	255	2950	35	7.45	18.5	2.0	φ139.5	145.7
	6.3	1.75	250		46.5	9.21		2.0
	7.5	2.08	245		48	10.40		2.5
11	3.75	1.04	280.5	2950	35	8.20	18.5	2.0	φ139.5	154.2
	6.3	1.75	275		46.5	10.13		2.0
	7.5	2.08	269.5		48	11.44		2.5
12	3.75	1.04	306	2950	35	8.94	18.5	2.0	φ139.5	162.8
	6.3	1.75	300		46.5	11.05		2.0
	7.5	2.08	294		48	12.48		2.5

4.Pump Structures
5.Applications
6.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 35 working days for diesel engine pump, and for bare shaft pump, it takes 25 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
7.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Company:Jiujiang SELE(DEFU) Fire Fighting Equipment Co.,Ltd
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Factory:Shanghai Y&L Pump Co.,Ltd

---
