CE Hx220HD Hx210HD Th225c 20 21 21.5 22ton Hydraulic Crawler Excavator Large Digger Eaxcavator in Algeria

Product Description

Product Description
CE Hx220HD Hx210HD TH225C 20 21 21.5 22ton Hydraulic Crawler Excavator Large Digger Eaxcavator in Algeria
TH225C excavator is equipped with a new air-conditioning system, which optimizes the air-conditioning ducts, provides stronger cooling effect, and more reasonable air volume distribution. The air conditioner evaporator enables in-car cleaning and maintenance, making cleaning easier. Configurations such as delayed extinguishing of lights when shutting down at night, one-touch switching of front and back display screens, and rear cameras ensure driving safety.
Application: Constructions works
Operating Weight: 21200kg
Engine: 6B5.9
Bucket Capacity: 1.0 m³
Main pump: K3V112DT, 2x218L/min
Main control valve: HVE270B, 350kgf/cm2
Rotary motor: M5X130CHB, 260kgf/cm2
Travelling motor: TM40VD, 350kgf/cm2
Dimensions: 9600x2800x3045mm
Product Parameters

Model	TH225C
Engine model	B5.9-C
Rated power	112kw/1950rpm
Max.torque	614N·M/1500rpm
Displacement	5.9 L
Emission standard	Tier 2
Operation Range
Operating weight	22800 kg
Max. digging height	10075mm
Max. dumping height	7165 mm
Max. digging depth	6515 mm
Max. vertical digging depth	5795 mm
Max. digging reach	9865 mm
Min. swing radius	2970 mm
Dimensions
Overall length	9615 mm
Overall width	3180 mm
Overall height	3045 mm
Tail swing radius	2925 mm
Min. ground clearance	466 mm
Counterweight ground clearance	1055 mm
Undercarriage/Working Device
Std. track shoe width	800 mm
Bucket capacity	1.05 m³
Carrier roller(per side)	2
Track roller(per side)	9
Track gauge	2380 mm
Boom length	5700 mm
Arm length	2925 mm
Performance
Travel speed	3.2/4.7 km/h
Gradeability	35°
Ground pressure	35.3 kPa
Tractive force	203 kN
Bucket digging force	127 kN
Arm digging force	92.5 kN
Service Refill Capacities
Fuel tank	330 L
Engine coolant	28 L
Engine oil	20 L
Hydraulic tank	270/400 L
Hydraulic System
Type	Negative flow Hydraulic system with Variable Displacement Piston Pump
Pump flow	2X218L/min
Swing System
Swing speed	0-10.2r/min

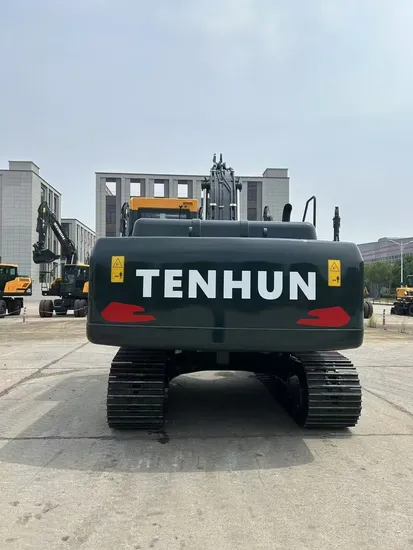

Detailed Photos
Packaging & Shipping

---
