Motorcycle Tire Spring Turn-up Building Machine

Product Description

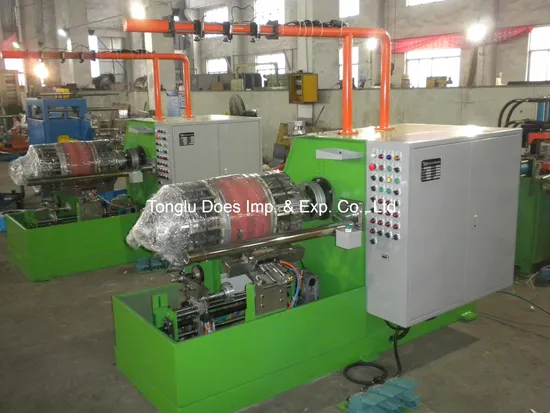

M/C Spring Turn-up Tire Building Machine
Application
Principally applied to used for tire building equipemnt in domestic and overseas at present, mainly used for produce motorcycle tire and motor tubeless green tire . Integration of PLY applying, bead applying and cord turn-up , high degree of automatic, good quality green tire building, easy and simple operation.
Structure Features
It consists of building durm,down compression roller, bead suction device, cord fabric, tread infrared centering device, compacting mechanism, servicer, etc.
Technical Parameter

Type	M/C-STB-0815
Forming Type	Flat durm expanding type
Applicable Specification	08"-15"
Building Drum Wideth(mm)	350-750
Servicer Layers	4
Ply Width(mm)	≤500
Liner cloth dia(mm)	≤250
Ply Roll dia(mm)	≤450
Dimension(mm)	3800X2260X1930

---
