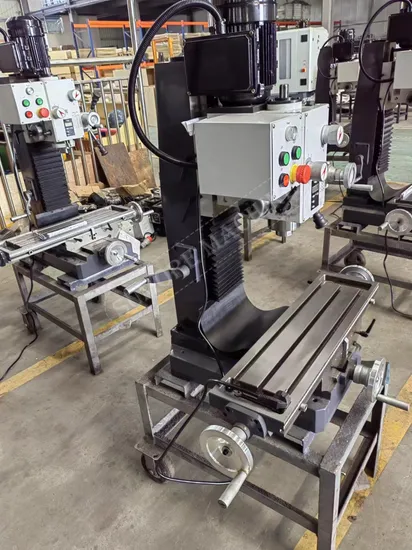

Universal Vertical and Manual Sumore China Bench Milling Machine Drilling

Product Description

Product Description
vertical small manual Milling drilling Machine power 750W SP2217-III SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal SP2217-I Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Quick detais
1.Drilling capacity:25mm
2.End mill capacity:20mm
3.Face milling capacity:63mm
4.Head tilt left & right:+90°
4.Spindle taper:MT3 or R8
5.Spindle speed: 50-2250rpm
7.Working tabel:500*180/700*180mm
7.Power:750W
Features/Advantages
Tapping Function
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Table Auto Feed
Rigid cast iron construction with dovetailed slideways
Easy function change makes a versatile machine
Perfect for slotting, grooving, splines and gear cutting
Product Parameters

Model	SP2217-IV
max drilling capacity	32mm
Max tapping capacity	12mm
max end milling capacity	20mm
max face milliing capacity	76mm
table size	840 x 210mm
number of spindle speed	variable
range of spindle speed	50 - 3000 rpm
spindle taper	MT3
Y travel	220mm
X travel	625mm
Z travel	370mm
spindle travel	70mm
T slot size	12mm
Slot number	3 piece
headstock tilt left and right	-+90o
Machine size	850x890x1120mm
Motor	1.5KW/220V Brushless Motor
NW/GW	220/260KG

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
