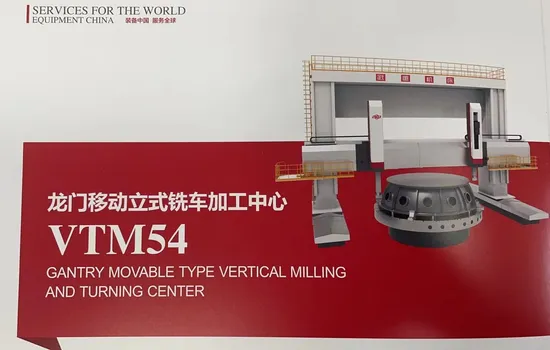

Vtm5435 Gantry Movable Type Vertical Milling and Turning Center/ Customerized Machine

Product Description

Product Description
APPLICATION
VTM54 series turning and milling combined machin he can complete turning, milling, drilling, boring and tapping by once set up.X/Y/Z/C 4 axis simutaneous can be rea lized.
The machine is especially suitable for turning, mill ing, drilling, boring and tapping by once set up of large sized precision and complicated part.
The main performance characteristics:
Gantry can travel back-force, with CNC Y axis. X/Y/Z/C can realize 4-axis linked machining. Main fundamental parts adopt high quality casting iron. Table adopts high accuracy double row roller bearing in radial for centering; in axial pump per pocket hydrostatic guide way of constant flow s adopted for supporting. Table can adopt double AC spindle motor drive; can realize high precision electric gap elimination. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change.
Product Parameters

Item	Unit	Model
		VTM5431	VTM5435	VTM5440	VTM5450
Max turning diameter	mm	Φ3150	Φ3500	Φ4000	Φ5000
Max turning height	mm	2500/2500	2000/2500	2000/2500	2500/3000
Table diameter	mm	Φ2850	Φ3150	Φ3600	Φ4500
Table loading capacity	t	40	40	50	63
Highest table turning speed	r/min	63	63	40	40
Max table torque	kN.m	80	80	125	160
Ram section size	mm2	250/280	250/280	250/280	300
Max ram travel	mm	1500	1500	1500	1500/2000
Milling spindle power	kW	25/31	25/31	25/31	25/31
Milling spindle max torque	N.m	750/1000	750/1000	750/1000	750/1000
Milling spindle highest speed	r/min	2500	2500	2500	2500
Turning main motor power	kW	31×2	31×2	40×2	57×2

Detailed Photos
Workshop
Package
Installation and commissioning

---
