Mkf2120 Mulit-Function CNC ID&Od Grinding Compound Grinder

Product Description

Product Description
Main purposes of the machine tool:
MKF2120 is composed of three axes, of which X axis is the feed system, Z1, Z2 axis are reciprocating system, Z1 axis is the outer end face sand wheel shaft, Z2 axis is the inner round sand wheel shaft.
Processing object:
The main processing objects of this machine tool are: it can grind inner cylindrical holes, inner conical holes, outer cylinders, outer conical surfaces, and inner and outer spherical surfaces. It is suitable for the inner and outer cylindrical processing of parts with an inner diameter of 20-200mm, an inner hole up to 200mm, an outer diameter of 30-300mm, and a maximum length of 200mm.
Product Parameters
Key Technical Parameters for MKF2120Multi-functional CNC Compound Grinding Machine:

Serial number	Name	Specification
1	Grinding hole diameter range	20-200mm
2	Maximum grinding depth of inner hole	200mm
3	Maximum grinding outer diameter	300mm
4	Maximum diameter of workpiece	500mm
5	Inner hole and outer circle roundness	2μm
6	Inner hole and outer circle cylindricity	3μm
7	Inner hole and outer circular surface roundness	Ra0.4
8	Internal and external concentricity	3μm
9	Perpendicularity of inner hole to end face	3μm

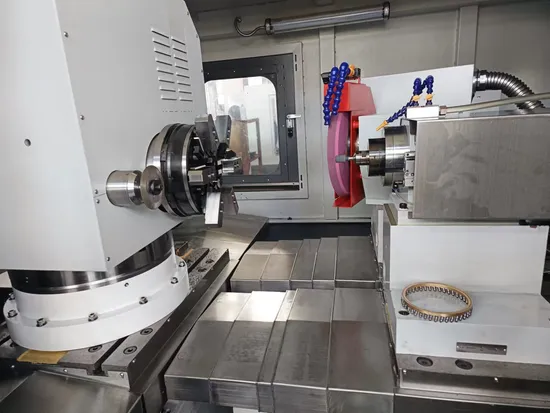

Detailed Photos

Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Certifications

After Sales Service
Packaging & Shipping

---
